End piece, Swing, left
Type GAD EL Swing EL
|Item no. 6115915
|EAN 4012195914372
Item no. / Type
6115915 / GAD EL Swing EL
Colour
aluminium
Smallest selling unit: 1 piece
1piece
piece
Description

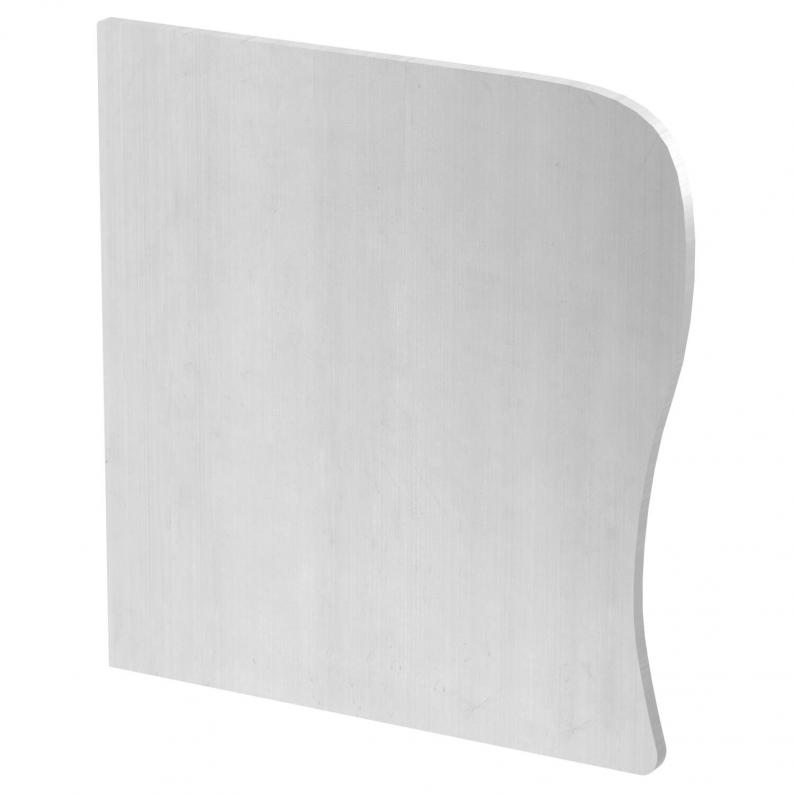

End piece for design device installation trunking of the GAD series. "Swing" design version. The end piece can only be used for closing on the left side.
Standard version in anodised aluminium, different decoration on request.
Standard version in anodised aluminium, different decoration on request.
Technical data

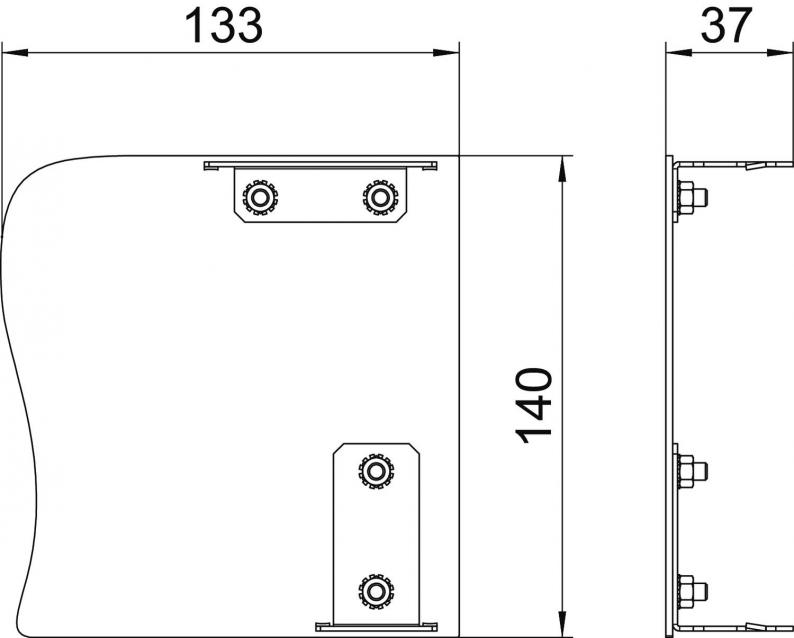

Dimensions
| Length | 37 mm |
|---|---|
| Width | 140 mm |
| Height | 133 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruyucu folyo | yes |
| Kesim yeri gizleme elemanı | no |
| for duct width | 140 mm |
| for trunking height | 114 mm |
| Version for | Asymmetrical |
| Fastening type | Lockable |
| Suitable for | Left |
| Boyut | 133x140x37 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| Antibacterial treatment | no |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 1,8795 kg CO2e / 1 Piece |
|---|
