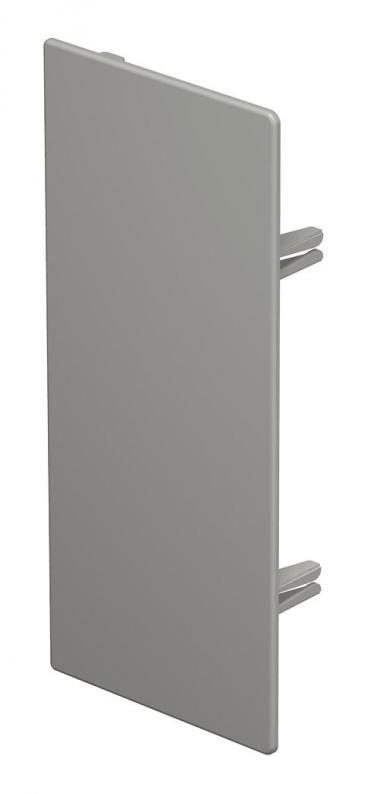

End piece, trunking type WDK 100230

End piece, trunking type WDK 100230

Type WDK HE100230GR
|
Item no. 6024904
|
EAN 4012196651375
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 5 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length25 mm
Width230 mm
Height100 mm
Dimension H230 mm
Dimension b100 mm
Dimension a230 mm

Technical data

Maintain electrical functionsno
Halojen İçermezno
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut100x230mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,2571 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE100230GR
Item no.
6024904
Dimension H
230
Dimension b
100
Dimension a
230
Colour
Stone grey; RAL 7030
WDK HE100230CW
Item no.
6163076
Dimension H
230
Dimension b
100
Dimension a
230
Colour
Cream; RAL 9001
WDK HE100230LGR
Item no.
6183980
Dimension H
230
Dimension b
100
Dimension a
230
Colour
Light grey; RAL 7035
WDK HE100230RW
Item no.
6193399
Dimension H
230
Dimension b
100
Dimension a
230
Colour
Pure white; RAL 9010
