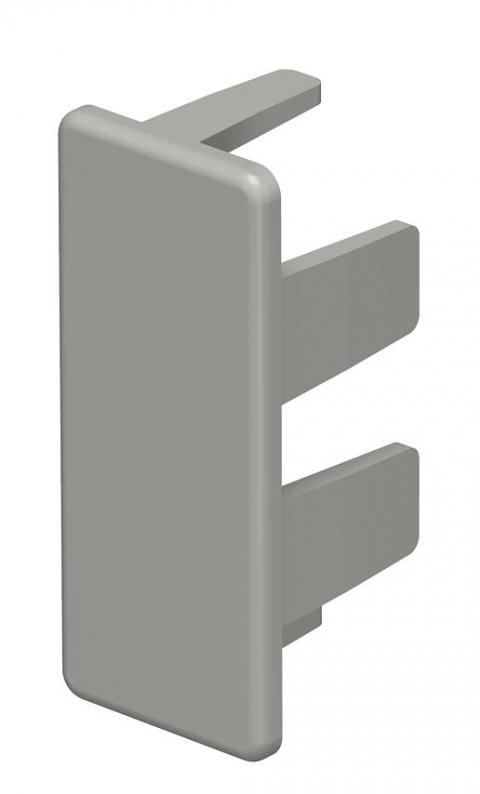

End piece, trunking type WDK 15040
Type WDK HE15040GR
|Item no. 6158722
|EAN 4012196434596
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour
Smallest selling unit: 10 piece
10piece
piece
Description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
The end pieces are pushed onto the WDK trunking and are fixed on the connector by spring force.
Technical data

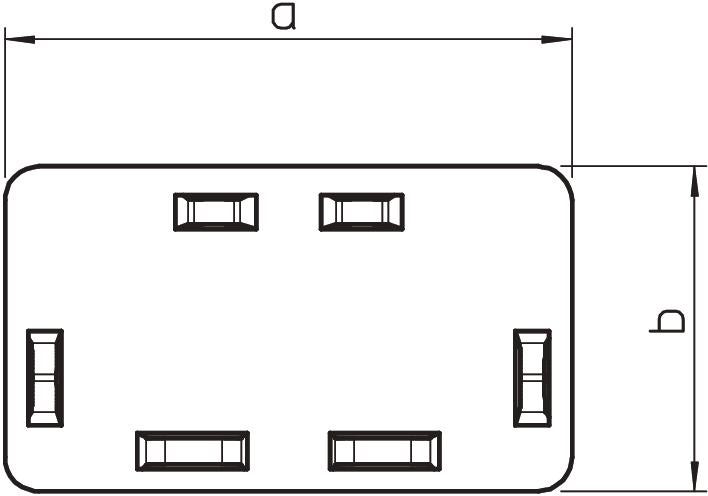

Dimensions
| Length | 17 mm |
|---|---|
| Width | 40 mm |
| Height | 17 mm |
| Dimension H | 40 mm |
| Dimension b | 17 mm |
| Dimension a | 40 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halojen İçermez | no |
| Koruyucu folyo | no |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK04 |
| Version for | Left/right |
| Fastening type | Lockable |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 15x40mm |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| Antibacterial treatment | no |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0253 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension H
Dimension b
Dimension a
Colour
Item no.
WDK HE15040GR
40
17
40
Stone grey; RAL 7030
6158722
WDK HE15040CW
40
17
40
Cream; RAL 9001
6162525
WDK HE15040RW
40
17
40
Pure white; RAL 9010
6193110
Colour
WDK HE15040GR
Item no.
6158722
Dimension H
40
Dimension b
17
Dimension a
40
Colour
Stone grey; RAL 7030
WDK HE15040CW
Item no.
6162525
Dimension H
40
Dimension b
17
Dimension a
40
Colour
Cream; RAL 9001
WDK HE15040RW
Item no.
6193110
Dimension H
40
Dimension b
17
Dimension a
40
Colour
Pure white; RAL 9010
