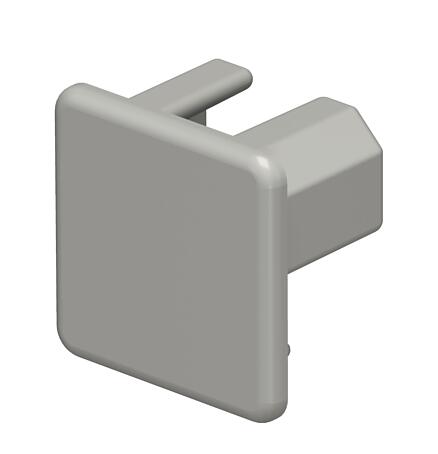

End piece, trunking type WDK 20020

End piece, trunking type WDK 20020

Type WDK HE20020GR
|
Item no. 6158706
|
EAN 4012196434473
Show all variants
Item no. / Type

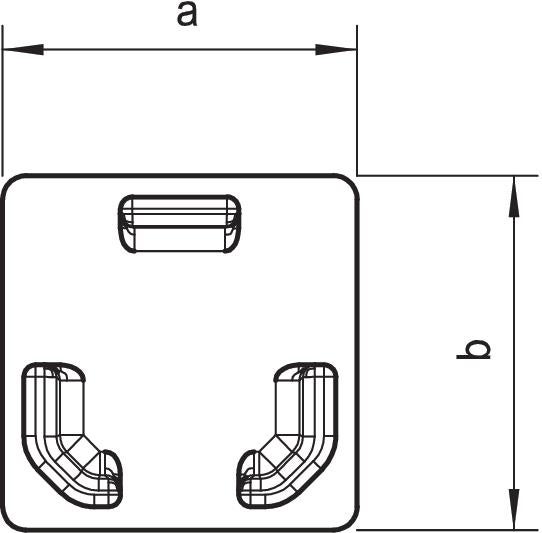

Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length11,5 mm
Width17 mm
Height17 mm
Dimension H20 mm
Dimension b17 mm
Dimension a17 mm

Technical data

Maintain electrical functionsno
Halojen İçermezno
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut20x20mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,0044 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE20020GR
Item no.
6158706
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Stone grey; RAL 7030
WDK HE20020CW
Item no.
6162509
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Cream; RAL 9001
WDK HE20020LGR
Item no.
6183611
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Light grey; RAL 7035
WDK HE20020RW
Item no.
6193129
Dimension H
20
Dimension b
17
Dimension a
17
Colour
Pure white; RAL 9010
