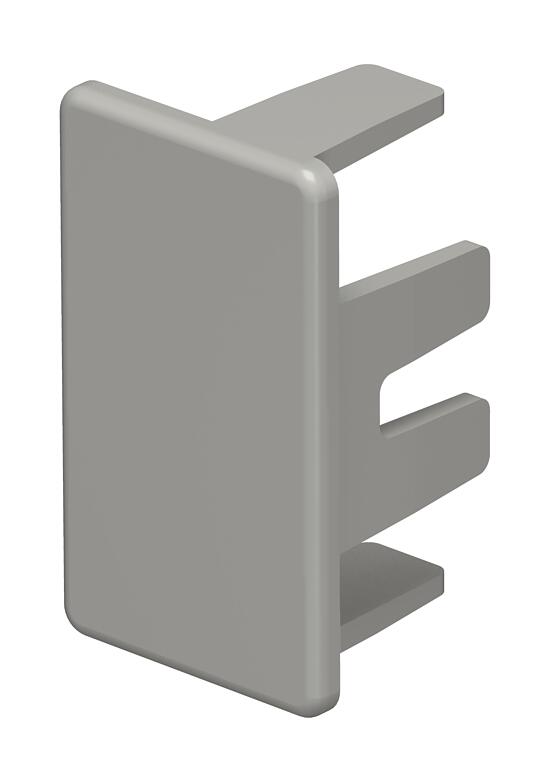

End piece, trunking type WDK 20035

End piece, trunking type WDK 20035

Type WDK HE20035GR
|
Item no. 6158781
|
EAN 4012196643158
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length17 mm
Width35 mm
Height20 mm

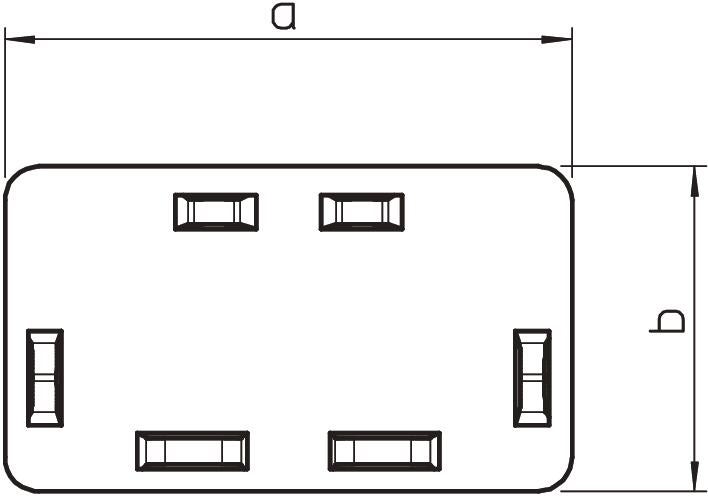

Dimension H35 mm
Dimension b20 mm
Dimension a35 mm

Technical data

Maintain electrical functionsno
Halojen İçermezno
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut20x35mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,0264 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE20035GR
Item no.
6158781
Dimension H
35
Dimension b
20
Dimension a
35
Colour
Stone grey; RAL 7030
WDK HE20035CW
Item no.
6162487
Dimension H
35
Dimension b
20
Dimension a
35
Colour
Cream; RAL 9001
WDK HE20035LGR
Item no.
6183654
Dimension H
35
Dimension b
20
Dimension a
35
Colour
Light grey; RAL 7035
WDK HE20035RW
Item no.
6193137
Dimension H
35
Dimension b
20
Dimension a
35
Colour
Pure white; RAL 9010
