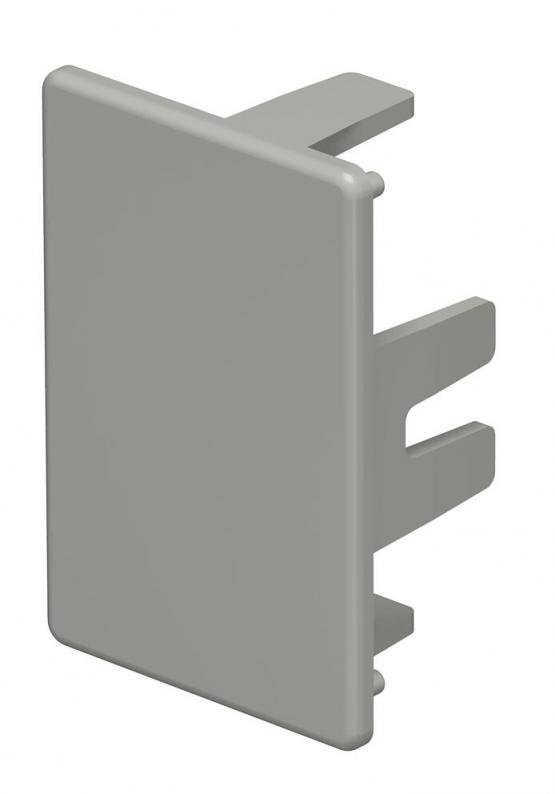

End piece, trunking type WDK 30045

End piece, trunking type WDK 30045

Type WDK HE30045GR
|
Item no. 6158803
|
EAN 4012196434831
Show all variants
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the floor connector by spring force.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length17 mm
Width45 mm
Height30 mm

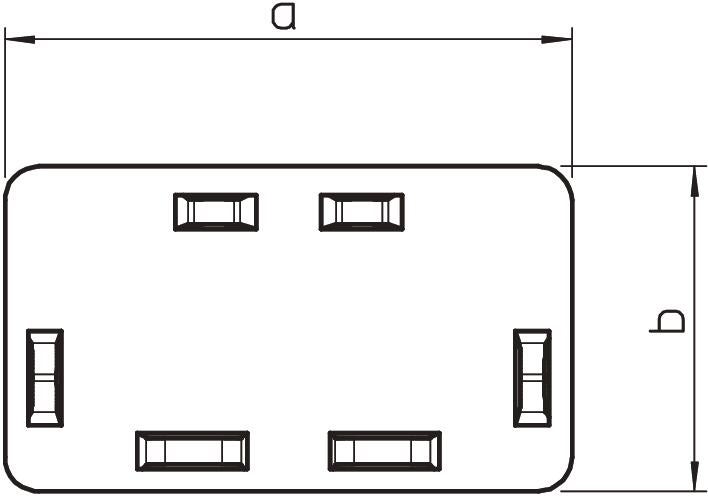

Dimension H45 mm
Dimension b30 mm
Dimension a45 mm

Technical data

Maintain electrical functionsno
Halojen İçermezno
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK04
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut30x45mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,0173 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HE30045GR
Item no.
6158803
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Stone grey; RAL 7030
WDK HE30045CW
Item no.
6162584
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Cream; RAL 9001
WDK HE30045LGR
Item no.
6183700
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Light grey; RAL 7035
WDK HE30045RW
Item no.
6193196
Dimension H
45
Dimension b
30
Dimension a
45
Colour
Pure white; RAL 9010
