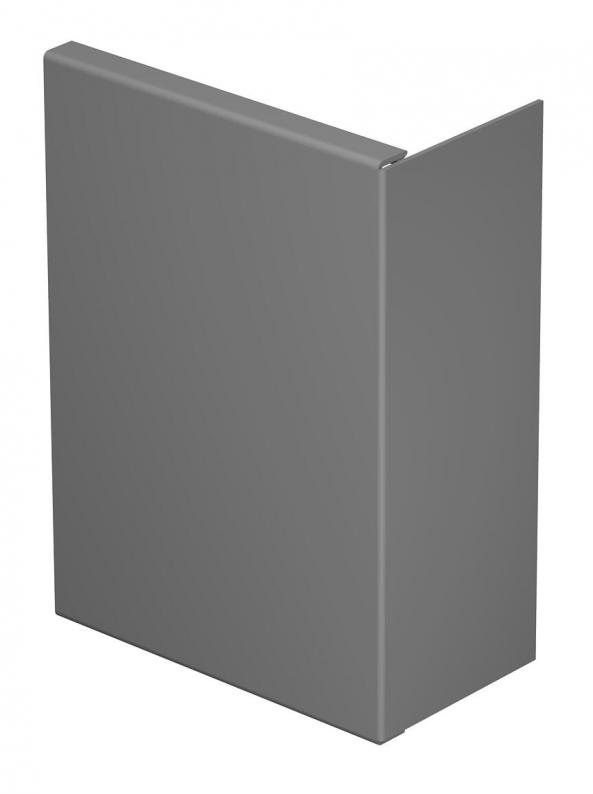

End piece, trunking type WDK 80210
Type WDK HE80210GR
|Item no. 6024874
|EAN 4012196028276
Item no. / Type
Dimension H
Dimension b
Dimension a
Colour
Smallest selling unit: 10 piece
10piece
piece
Description
End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
The end pieces are pushed onto the WDK trunking in the same way as the covers.
Technical data

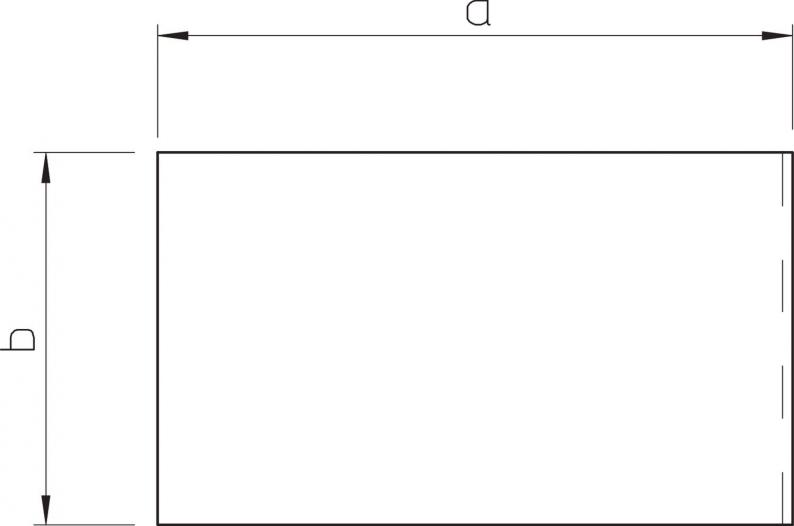

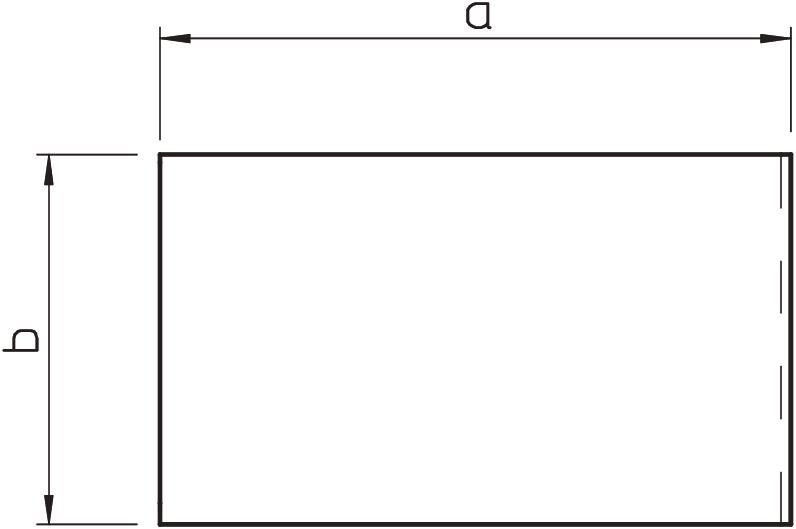

Dimensions
| Length | 150 mm |
|---|---|
| Width | 210 mm |
| Height | 80 mm |
| Dimension H | 210 mm |
| Dimension b | 210 mm |
| Dimension a | 150 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halojen İçermez | no |
| Koruyucu folyo | no |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK04 |
| Version for | Left/right |
| Fastening type | Lockable |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 80x210mm |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| Antibacterial treatment | no |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,4322 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)
Variants
Type
Dimension H
Dimension b
Dimension a
Colour
Item no.
WDK HE80210GR
210
210
150
Stone grey; RAL 7030
6024874
WDK HE80210CW
210
210
150
Cream; RAL 9001
6163017
WDK HE80210LGR
210
210
150
Light grey; RAL 7035
6183921
WDK HE80210RW
210
80
150
Pure white; RAL 9010
6193391
