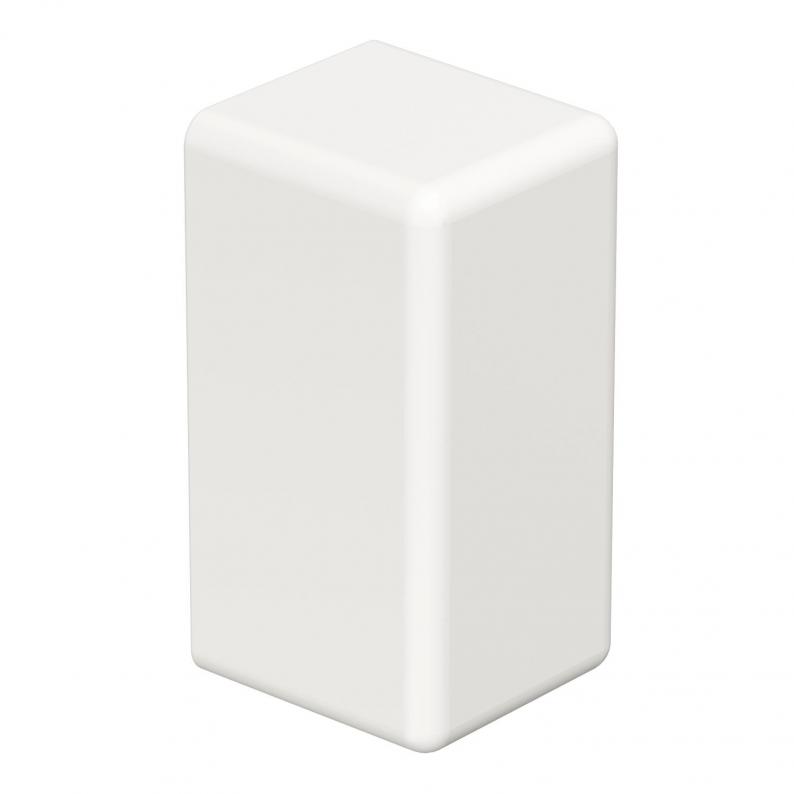

End piece, trunking type WDKH 10020
Type WDKH-E10020RW
|Item no. 6175540
|EAN 4012195933946
Item no. / Type
6175540 / WDKH-E10020RW

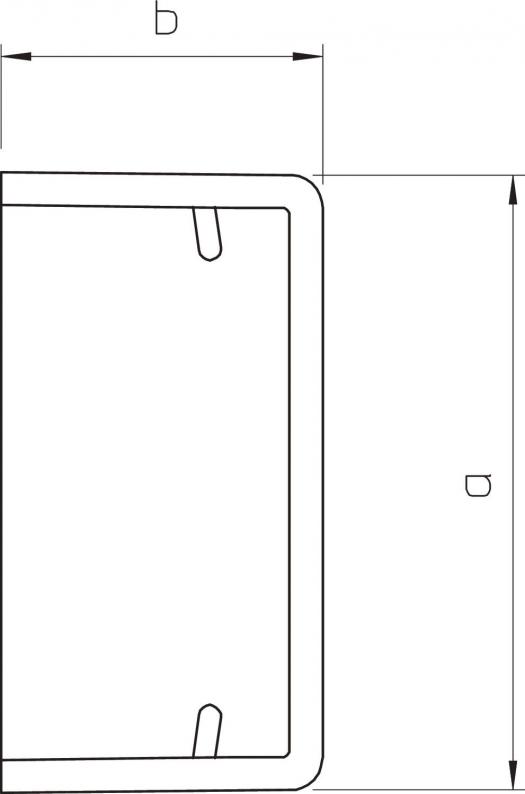

Dimension b
11 mm
Dimension a
22 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 10 piece
10piece
piece
Description
End piece for closing the WDKH trunking.
The end pieces are pushed onto the trunking and kept in place by the spring action.
The end pieces are pushed onto the trunking and kept in place by the spring action.
Technical data
Dimensions
| Length | 11 mm |
|---|---|
| Width | 22 mm |
| Height | 10 mm |
| Dimension b | 11 mm |
| Dimension a | 22 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halojen İçermez | yes |
| Koruyucu folyo | no |
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK07. |
| Version for | Left/right |
| Fastening type | Lockable |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 10x20mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0127 kg CO2e / 1 Piece |
|---|
