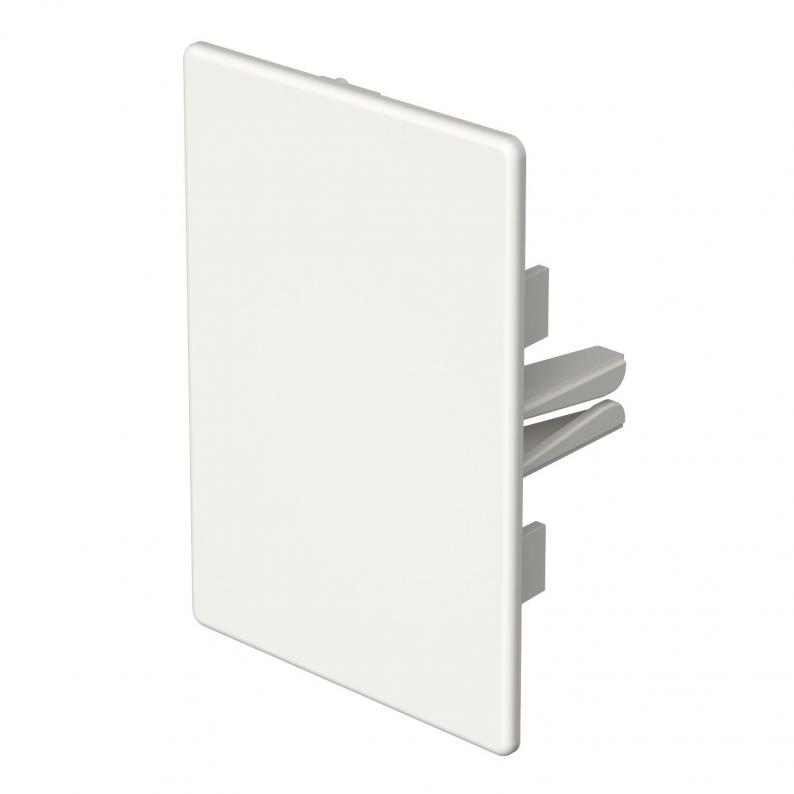

End piece, trunking type WDKH 60090

End piece, trunking type WDKH 60090

Type WDKH-E60090RW
|
Item no. 6175562
|
EAN 4012195813941
Show all variants
Item no. / Type
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece for closing the WDK-H trunking.
  • Halojen içermez; Klor, flüor ve brom içermez
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length27,5 mm
Width90 mm
Height60 mm
Dimension b60 mm
Dimension a90 mm

Technical data

Maintain electrical functionsno
Halojen İçermezyes
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK07.
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.90 °C
Boyut60x90mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,1467 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
WDKH-E60090RW
Item no.
6175562
Dimension b
60
Dimension a
90
Colour
Pure white; RAL 9010
WDKH-E60090LGR
Item no.
6175940
Dimension b
60
Dimension a
90
Colour
Light grey; RAL 7035
