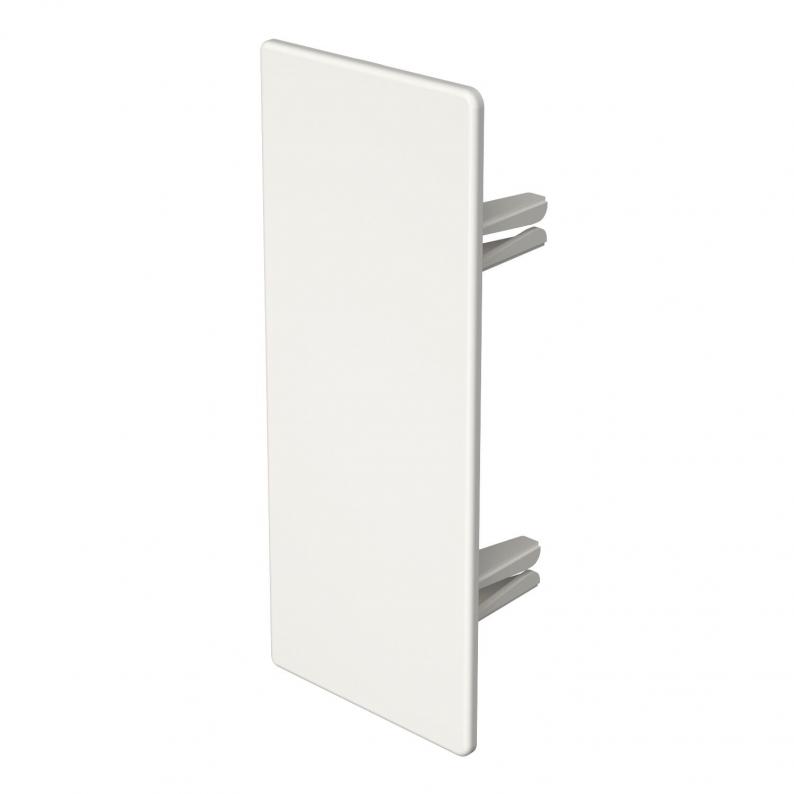

End piece, trunking type WDKH 60150

End piece, trunking type WDKH 60150

Type WDKH-E60150RW
|
Item no. 6175570
|
EAN 4012195813965
Show all variants
Item no. / Type
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length27,5 mm
Width150 mm
Height60 mm
Dimension b60 mm
Dimension a150 mm

Technical data

Maintain electrical functionsno
Protective filmyes
Protection ratingIP30
Protection rating IK codeIK07.
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension60x150mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,2669 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,2669 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2669 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Packaging without plasticyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
WDKH-E60150RW
Item no.
6175570
Dimension b
60
Dimension a
150
Colour
Pure white; RAL 9010
WDKH-E60150LGR
Item no.
6175948
Dimension b
60
Dimension a
150
Colour
Light grey; RAL 7035
