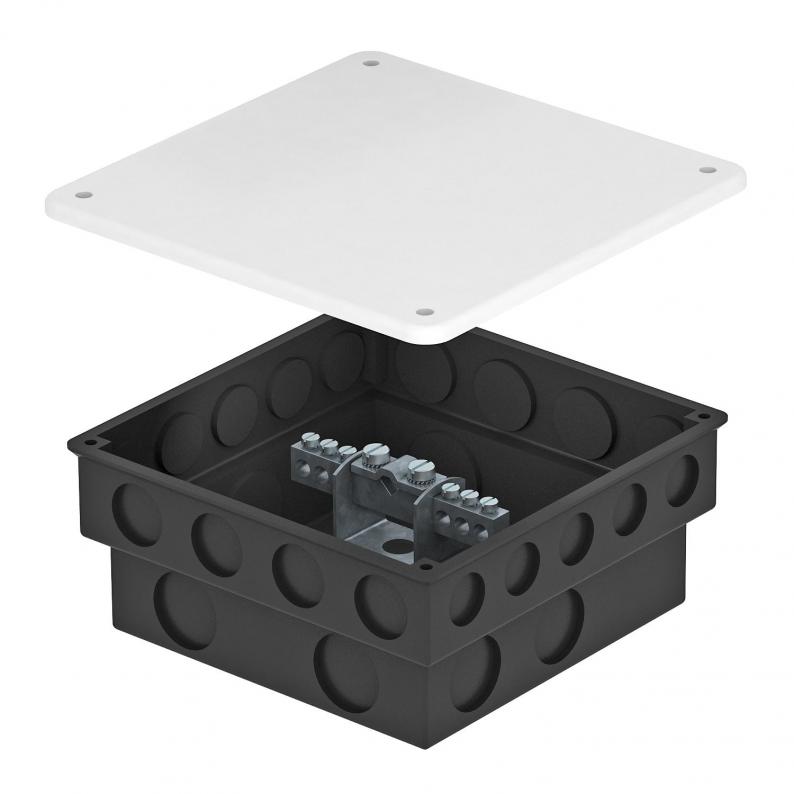

Equipotential busbar 1804 for concealed mounting
Type 1804 UP
|Item no. 5015545
|EAN 4012195378433



Item no. / Type
5015545 / 1804 UP
Length
120 mm
Width
120 mm
Height
53 mm
Smallest selling unit: 5 piece
5piece
piece
Description
1804/UP: Sıva altı montaj için potansiyel dengeleme barası
Bağlantı seçenekleri:
• 1,5-10 mm² kesite sahip 6 adet kablo
• 6-16 mm² kesite sahip 1 adet kablo
• Kesilmemiş olarak
• Monte edilmiş durumdaki potansiyel dengeleme barası 1804 ile
• Kutunun üzerinde, kabloların geçirileceği ve kapağın yerleştirileceği yerler ön baskı ile işaretlidir
Bağlantı seçenekleri:
• 1,5-10 mm² kesite sahip 6 adet kablo
• 6-16 mm² kesite sahip 1 adet kablo
• Kesilmemiş olarak
• Monte edilmiş durumdaki potansiyel dengeleme barası 1804 ile
• Kutunun üzerinde, kabloların geçirileceği ve kapağın yerleştirileceği yerler ön baskı ile işaretlidir
Technical data

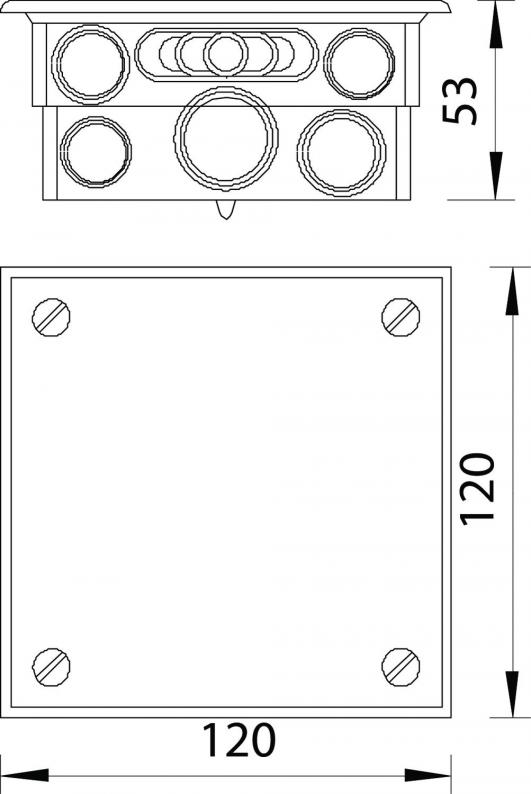

Dimensions
| Length | 120 mm |
|---|---|
| Width | 120 mm |
| Height | 53 mm |
Technical data
| Insulator | evet |
|---|---|
| Quantity of round conductor connections, total | 7 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 1 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 7 |
| Quantity of cable connections up to 25 mm², rigid | 0 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Çelik |
| Surface of the contact rail | Nikel kap. |
| Surface of the terminal | Galv. çinko kaplama |
| Version for | In the housing |
| Type | Fixed structure |
| Boyut | 50x5mm |
| Material | Brass |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0748 kg CO2e / 1 Adet |
|---|
