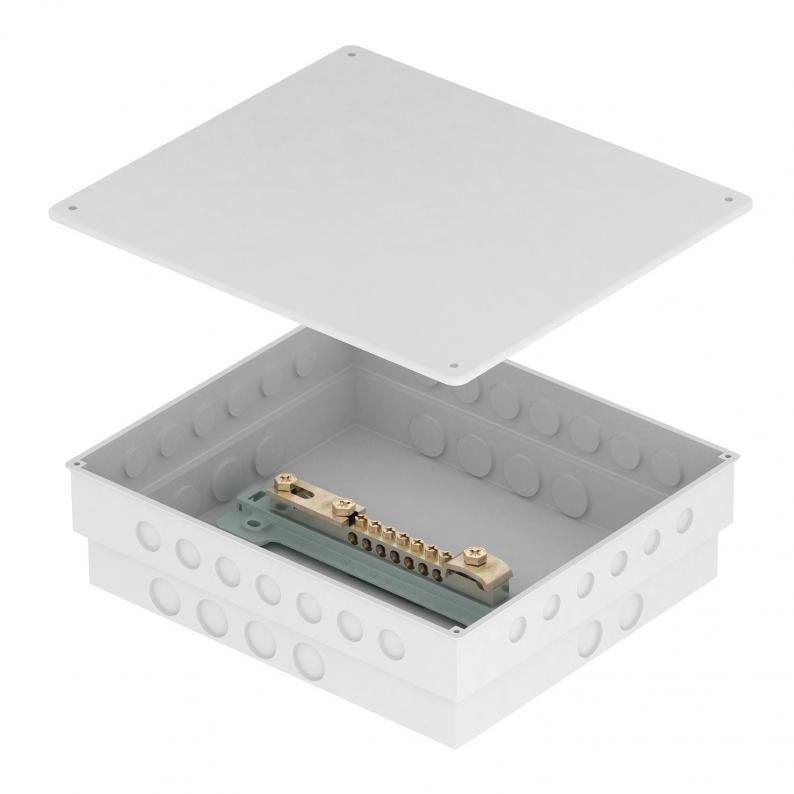

Equipotential busbar 1809 for concealed mounting

Equipotential busbar 1809 for concealed mounting

Type 1809 UP
|
Item no. 5015065
|
EAN 4012195378198
Show all variants
Item no. / Type
5015065 / 1809 UP
Length
250 mm
Width
220 mm
Height
67 mm

Smallest selling unit: 1 piece

piece

Description

1809/UP: Sıva altı montaj için potansiyel dengeleme barası
Bağlantı seçenekleri:

• Maks. 25 mm² kesite sahip 7 adet kablo
• 1 adet Rd 8-10 tipi yuvarlak iletken
• FL30'a kadar 1 adet yassı iletken veya Rd 8-10 tipi yuvarlak iletken
• Monte edilmiş durumdaki potansiyel dengeleme barası 1809 ile (kapaksız)
• Kutunun üzerinde, kabloların geçirileceği ve kapağın yerleştirileceği yerler ön baskı ile işaretlidir
  • Halojen içermez; Klor, flüor ve brom içermez
  • CO₂ footprint (PCF)

Technical data

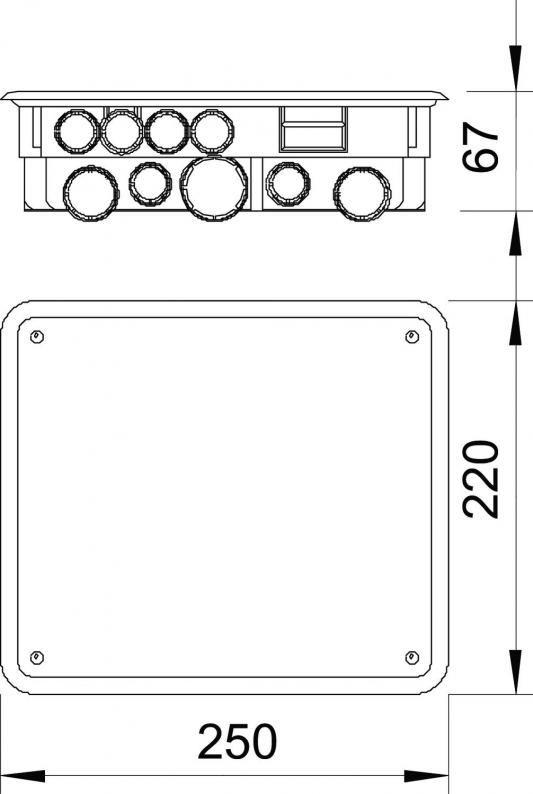

Dimensions

Length250 mm
Width220 mm
Height67 mm

Technical data

Insulatorevet
Quantity of round conductor connections, total1
Quantity of round conductor connections 8 mm0
Quantity of round conductor connections 10 mm0
Quantity of round conductor connections 8-10 mm1
Quantity of flat conductor connections up to 30 mm1
Quantity of flat conductor connections up to 40 mm0
Quantity of cable connections up to 6 mm², rigid0
Quantity of cable connections up to 16 mm², rigid0
Quantity of cable connections up to 25 mm², rigid7
Quantity of cable connections up to 95 mm², rigid0
Material of the contact railBrass
Material of the terminalÇelik
Surface of the contact railNikel kap.
Surface of the terminalGalv. çinko kaplama
Version forIn the housing
TypeFixed structure
Boyut50x5mm
MaterialBrass

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,6007 kg CO2e / 1 Adet
