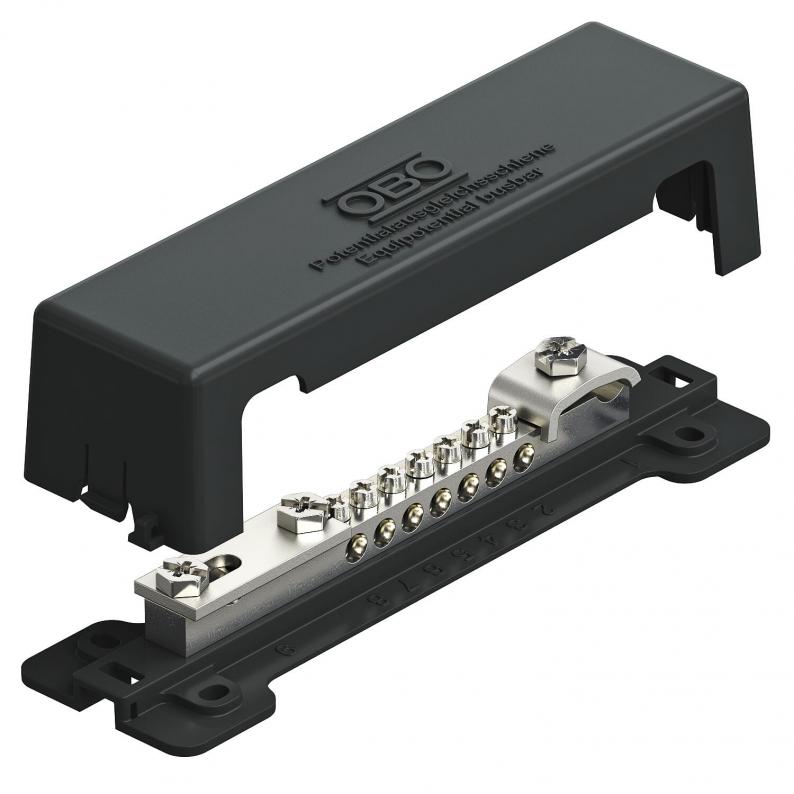

Equipotential busbar for outside installation
Type 1809 A
|Item no. 5015111
|EAN 4012195959427
Item no. / Type
5015111 / 1809 A
Length
188 mm
Width
52 mm
Height
44,5 mm
Colour
Black
Smallest selling unit: 1 piece
1piece
piece
Description
Equipotential busbar for equipotential bonding according to DIN VDE 0100-410/-540 and lightning protection equipotential bonding according to DIN VDE 0185-305
• Cover hood and base plate made of polystyrene
• Colour: Black, UV-resistant
• Screws and crossbar made of VA
• Capable of carrying lightning current 50 kA (10/350)
Connection options:
• 7 x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 x round conductor Rd 8-10
• 1 x flat strip to FL30 or round conductor Rd 8-10
• Cover hood and base plate made of polystyrene
• Colour: Black, UV-resistant
• Screws and crossbar made of VA
• Capable of carrying lightning current 50 kA (10/350)
Connection options:
• 7 x single or multi-core cables to 25 mm² or fine-core cables to 16 mm²
• 1 x round conductor Rd 8-10
• 1 x flat strip to FL30 or round conductor Rd 8-10
Technical data
Dimensions
| Length | 188 mm |
|---|---|
| Width | 52 mm |
| Height | 44,5 mm |
Technical data
| Insulator | evet |
|---|---|
| Quantity of round conductor connections, total | 1 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 1 |
| Quantity of flat conductor connections up to 40 mm | 0 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 7 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Çelik |
| Surface of the contact rail | Nikel kap. |
| Surface of the terminal | Galv. çinko kaplama |
| Version for | With cover hood |
| Lightning current carrying capacity | N/50 kA |
| Type | Fixed structure |
| Boyut | 50x5mm |
| Material | Stainless steel 1.4301 |
| Colour | Black |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,9056 kg CO2e / 1 Adet |
|---|
