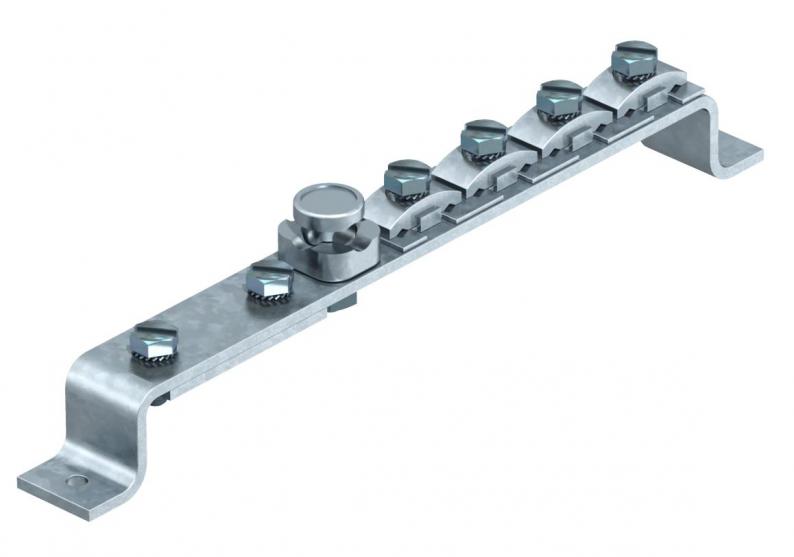

Equipotential busbar, simple version
Type 1808
|Item no. 5015014
|EAN 4012195378075
Item no. / Type
5015014 / 1808
Length
300 mm
Width
30 mm
Height
34 mm
Smallest selling unit: 1 piece
1piece
piece
Description
1808: Potansiyel dengeleme barası
Bağlantı seçenekleri:
• Maks. 25 mm² kesite sahip 8 adet kablo
• Rd 8-10 tipi 1 adet yuvarlak iletken
• FL40'a kadar 1 adet yassı iletken
• Elektro galvaniz kaplama çelik kelepçe ve üst sıkıştırma parçası
• Pirinç klemens gövdesi ve kontak çubuğu, sıcak galvanize kaplı çelik vidalar
Bağlantı seçenekleri:
• Maks. 25 mm² kesite sahip 8 adet kablo
• Rd 8-10 tipi 1 adet yuvarlak iletken
• FL40'a kadar 1 adet yassı iletken
• Elektro galvaniz kaplama çelik kelepçe ve üst sıkıştırma parçası
• Pirinç klemens gövdesi ve kontak çubuğu, sıcak galvanize kaplı çelik vidalar
Technical data

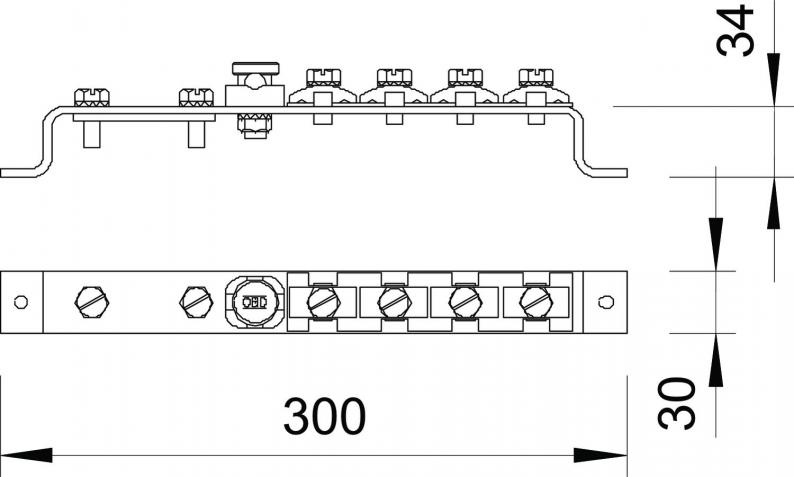

Dimensions
| Length | 300 mm |
|---|---|
| Width | 30 mm |
| Height | 34 mm |
Technical data
| Insulator | hayır |
|---|---|
| Quantity of round conductor connections, total | 1 |
| Quantity of round conductor connections 8 mm | 0 |
| Quantity of round conductor connections 10 mm | 0 |
| Quantity of round conductor connections 8-10 mm | 1 |
| Quantity of flat conductor connections up to 30 mm | 0 |
| Quantity of flat conductor connections up to 40 mm | 1 |
| Quantity of cable connections up to 6 mm², rigid | 0 |
| Quantity of cable connections up to 16 mm², rigid | 0 |
| Quantity of cable connections up to 25 mm², rigid | 8 |
| Quantity of cable connections up to 95 mm², rigid | 0 |
| Material of the contact rail | Brass |
| Material of the terminal | Brass |
| Surface of the contact rail | Nikel kap. |
| Surface of the terminal | Nikel kap. |
| Version for | Without cover hood |
| Type | Fixed structure |
| Boyut | 300mm |
| Material | Brass |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 1,5903 kg CO2e / 1 Adet |
|---|
