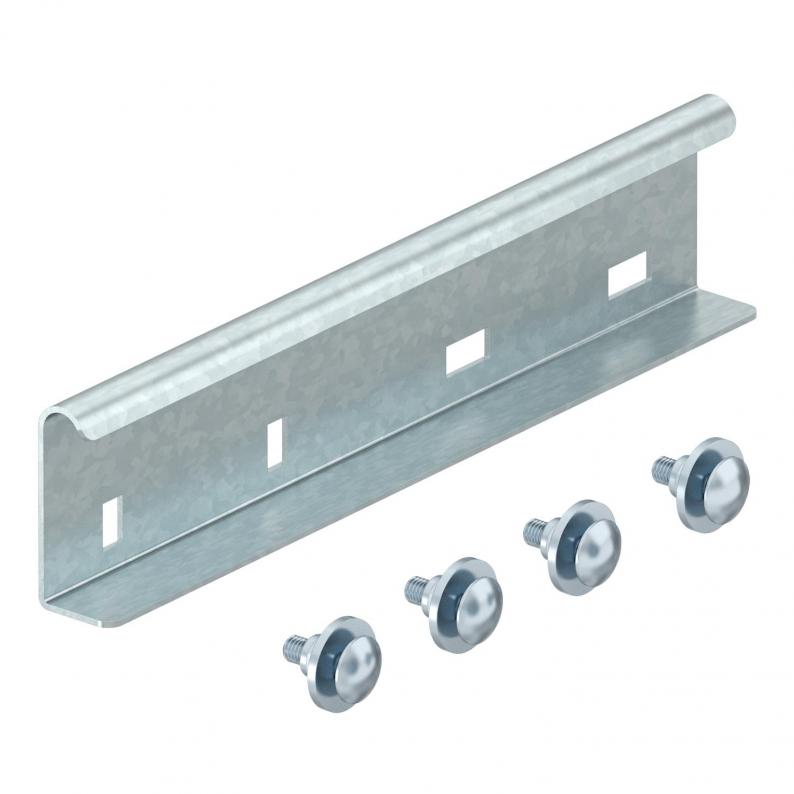

Expansion connector
Type LDVG 60 FT
|Item no. 6208970
|EAN 4012196464623
Item no. / Type
6208970 / LDVG 60 FT
Height
60 mm
Smallest selling unit: 2 piece
2piece
piece
Description
Connector for expansion for compensation of linear thermal expansion. The tightening torques of the self-locking screws on the loose bearing side are 5 Nm.
Technical data

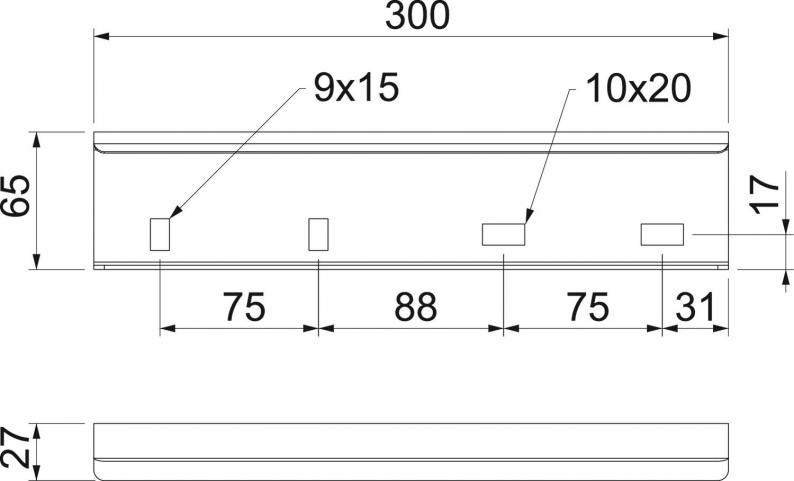

Dimensions
| Length | 300 mm |
|---|---|
| Width | 27 mm |
| Height | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 60 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 60x300 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,4731 kg CO2e / 1 Piece |
|---|
