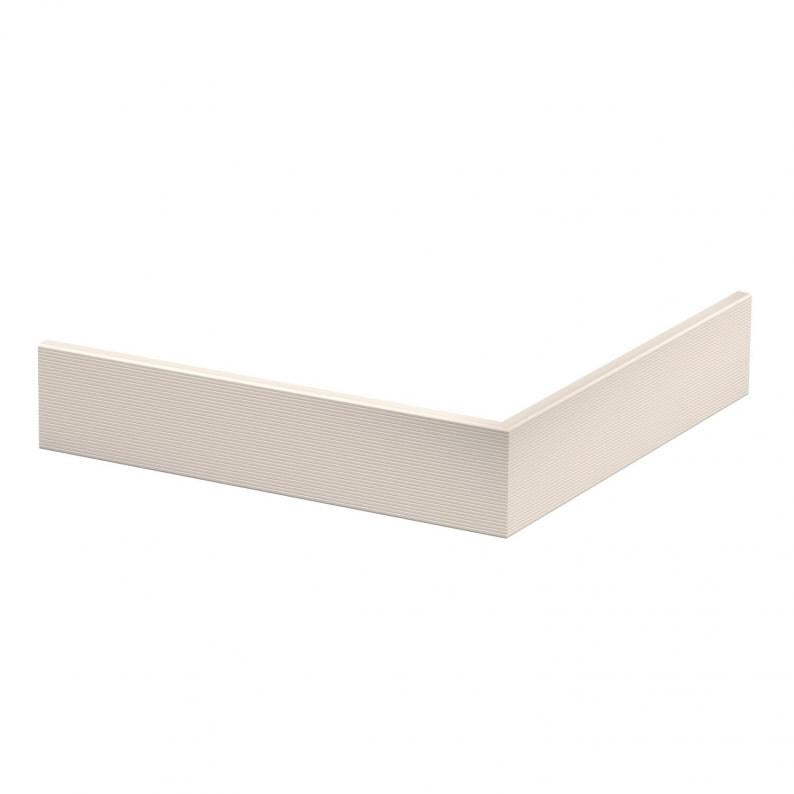

External corner cover, smooth

External corner cover, smooth

Type GK-OTGACW
|
Item no. 6274791
|
EAN 4012195657347
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

PVC external corner cover, smooth surface.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

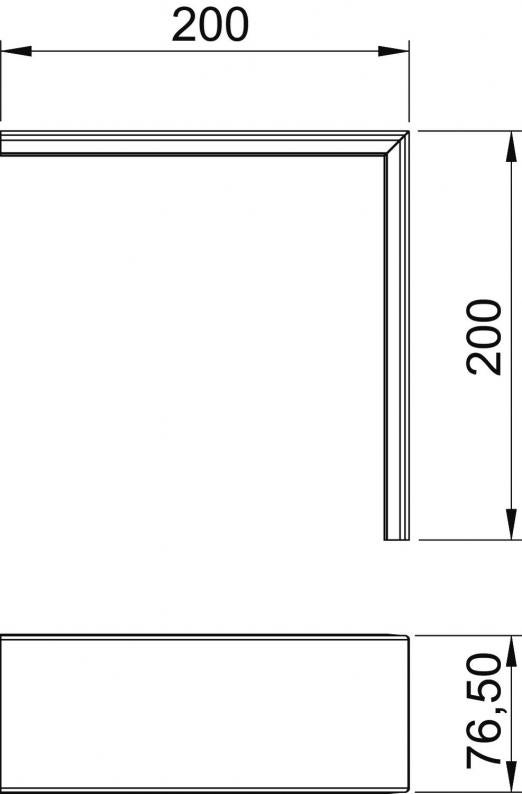

Dimensions

Length200 mm
Width76,5 mm
Height12 mm

Technical data

Halogen-freeno
Protective filmyes
Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK08
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourCream; RAL 9001
Product seriesRapid 80®

Environmental Data

0,2564 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,2564 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2564 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GK-OTGARW
Item no.
6274790
Width
76,5
Colour
Pure white; RAL 9010
GK-OTGACW
Item no.
6274791
Width
76,5
Colour
Cream; RAL 9001
GK-OTGALGR
Item no.
6274792
Width
76,5
Colour
Light grey; RAL 7035
GK-OTGAGR
Item no.
6274796
Width
76,5
Colour
Stone grey; RAL 7030
