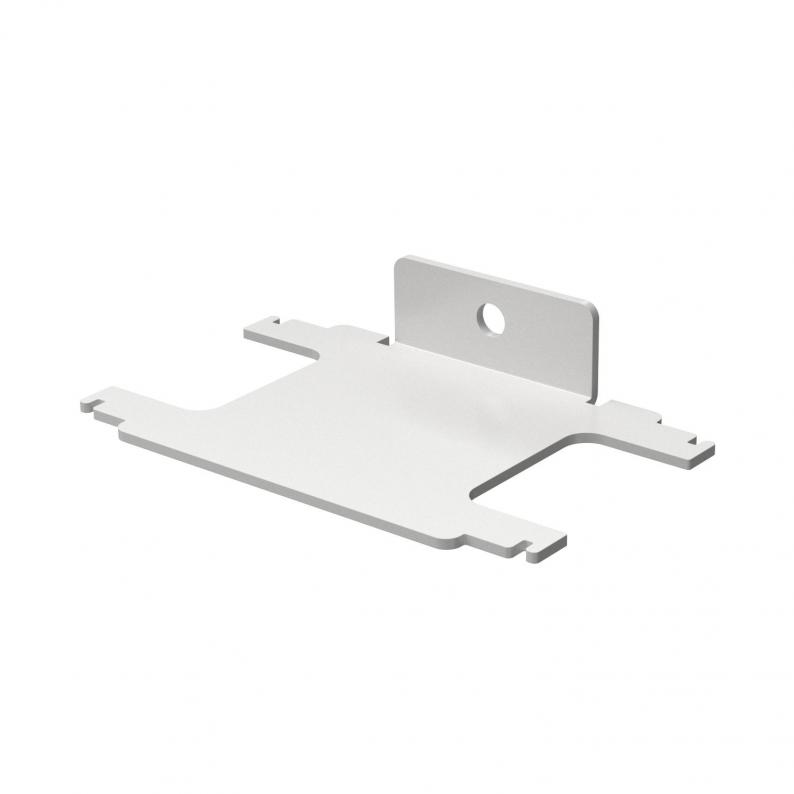

Fastening bracket for ISST70140
Type ISSBW70140RW
|Item no. 6290150
|EAN 4012195161813
Item no. / Type
6290150 / ISSBW70140RW
Smallest selling unit: 1 piece
1piece
piece
Description
Fixing bracket for wall fastening of the twin service pole. Suitable for installation on the service poles of type ISST70140 and ISST70140B.
Technical data

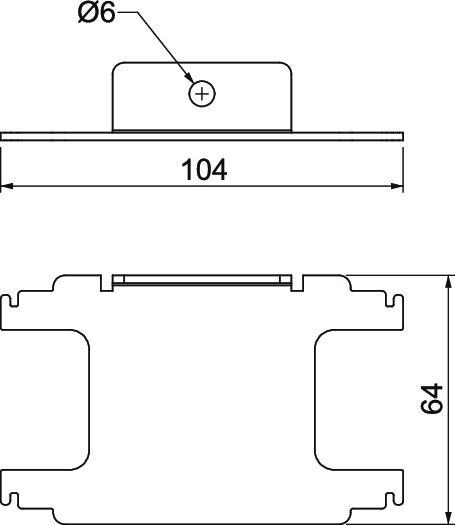

Dimensions
| Length | 104 mm |
|---|---|
| Width | 64 mm |
| Height | 20 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Type of accessory | Fastening bracket |
| Boyut | 104x64x20 |
| Surface | Strip galvanized / plastic coated |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,6266 kg CO2e / 1 Piece |
|---|
