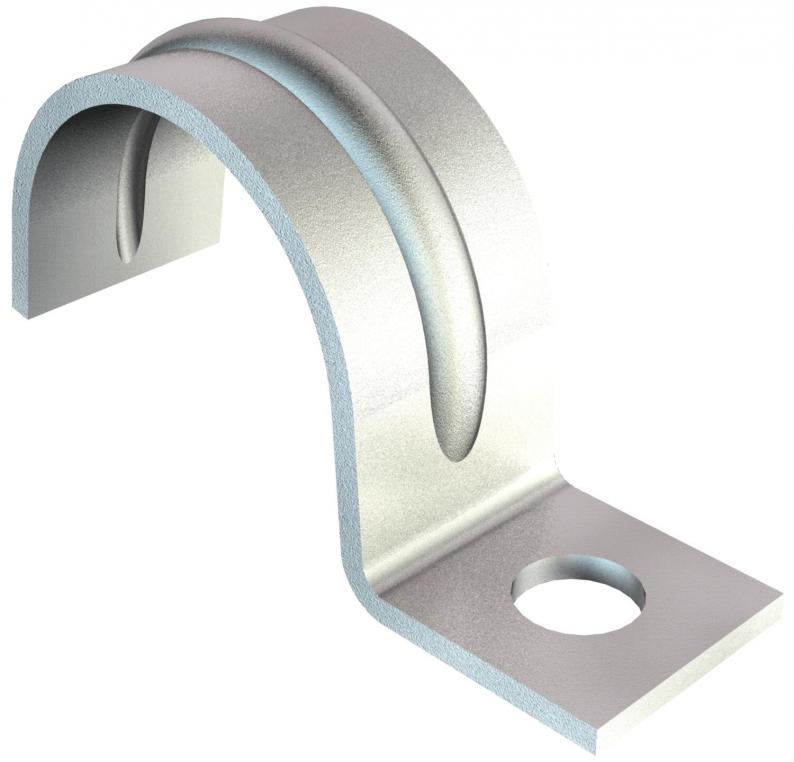

Fastening clip 1015, medium-duty

Fastening clip 1015, medium-duty

Type 1015 25 G
|
Item no. 1009427
|
EAN 4012195009078
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

Description

Single-lobe fastening clip for cables and pipes.
Beading from size 20.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

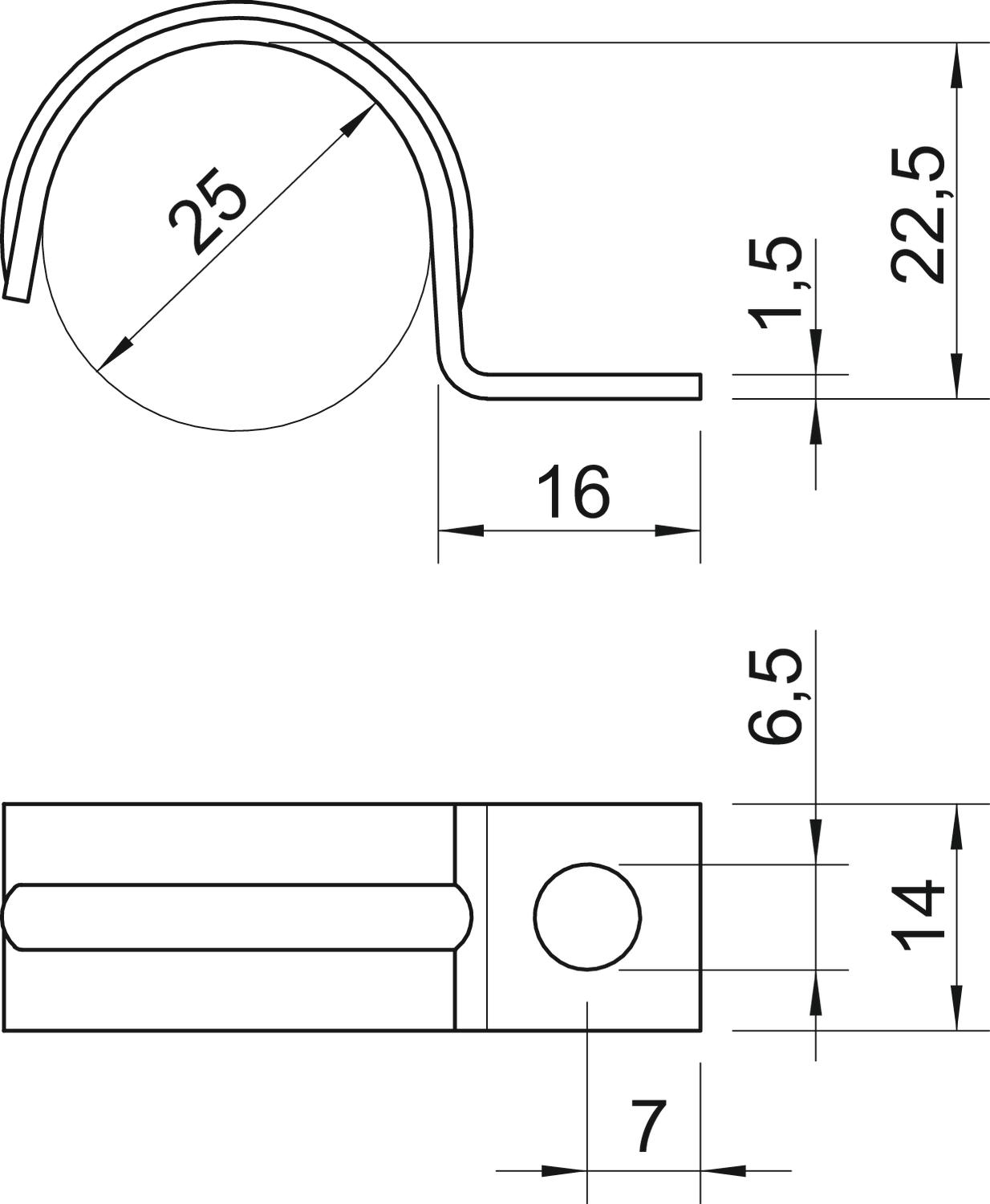

Dimensions

Length16 mm
Width14 mm
Height22,5 mm
Dimension L16 mm
Dimension A7 mm
Dimension H22,5 mm
Dimension b14 mm
Dimension D25 mm

Technical data

Maintain electrical functionsyes
Material thickness1,5 mm
For diameter25
Hole size6,5
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter25 mm
Distance to the wallno
Version forSingle-lobe
Fastening typeScrew hole
Dimension25mm
SurfaceElectrogalvanised
MaterialSteel

Environmental Data

0,0219 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0219 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

For diameter
1015 20 G
Item no.
1009230
For diameter
20
1015 28 G
Item no.
1009362
For diameter
28
1015 25 G
Item no.
1009427
For diameter
25
