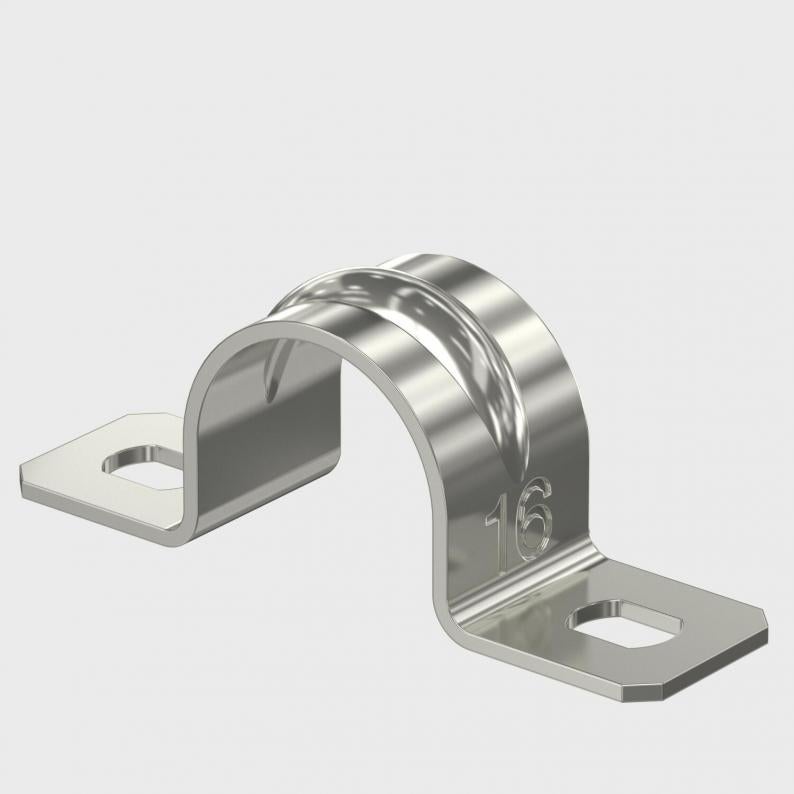

Fastening clip 605, medium duty, V4A

Fastening clip 605, medium duty, V4A

Type 605 16 A4
|
Item no. 1018661
|
EAN 4012195912064
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

Description

Two lobe fastening clips for cables and pipes.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

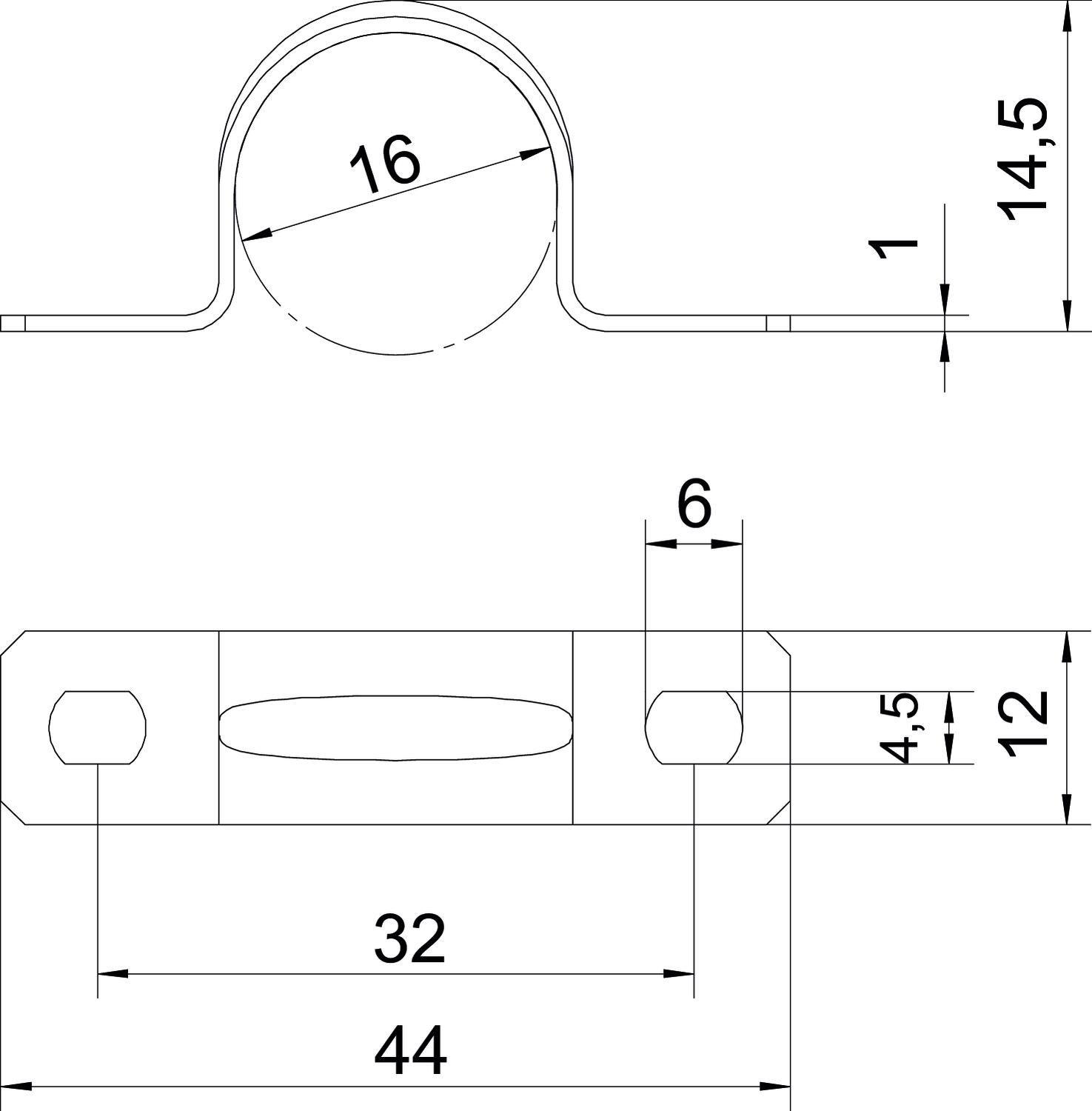

Dimensions

Length44 mm
Width12 mm
Height14,5 mm
Dimension A44 mm
Dimension d4,5 mm
Dimension B32 mm
Dimension H14,5 mm
Dimension t1 mm
Dimension b12 mm
Dimension e6 mm
Dimension D16 mm

Technical data

Material thickness1 mm
For diameter16
Hole size4,5 x 6
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter16 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
Dimension16mm
SurfaceBright, treated
MaterialStainless steel 1.4571

Environmental Data

0,0415 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0415 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0415 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (2)
Tender specifications (1)

Variants

For diameter
605 12 A4
Item no.
1018653
For diameter
12
605 16 A4
Item no.
1018661
For diameter
16
605 20 A4
Item no.
1018669
For diameter
20
605 25 A4
Item no.
1018679
For diameter
25
605 32 A4
Item no.
1018693
For diameter
32
605 40 A4
Item no.
1018705
For diameter
40
605 50 A4
Item no.
1018717
For diameter
50
605 63 A4
Item no.
1018729
For diameter
63
