Fastening clip 605, medium duty, V4A
Type 605 50 A4
|Item no. 1018717
|EAN 4012195906476
Item no. / Type
For diameter
Smallest selling unit: 25 piece
25piece
piece
Description
Two lobe fastening clips for cables and pipes.
Technical data

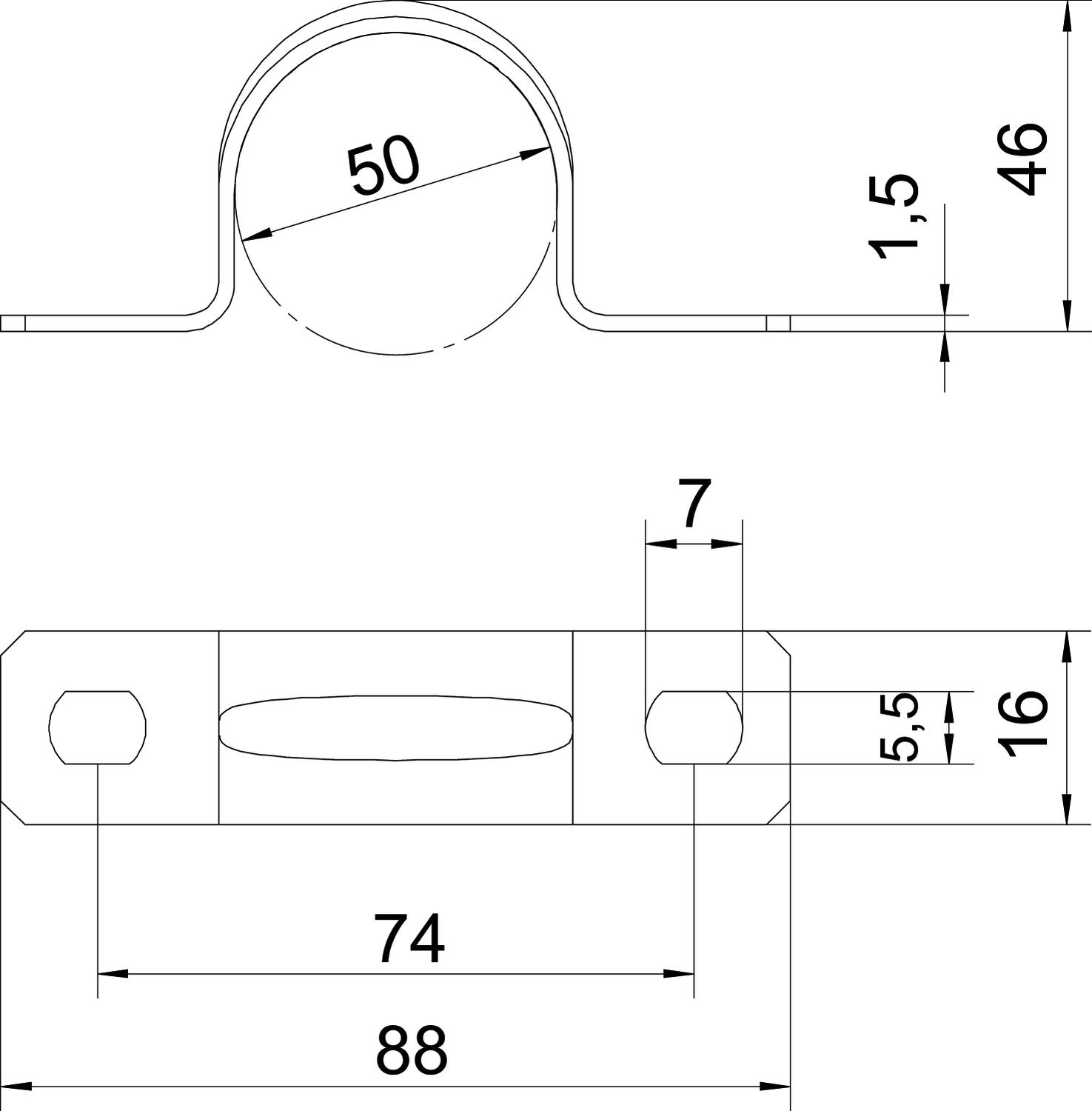

Dimensions
| Length | 88 mm |
|---|---|
| Width | 16 mm |
| Height | 46 mm |
| Dimension A | 88 mm |
| Dimension d | 5,5 mm |
| Dimension B | 74 mm |
| Dimension H | 46 mm |
| Dimension t | 1,5 mm |
| Dimension b | 16 mm |
| Dimension e | 7 mm |
| Dimension D | 50 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| For diameter | 50 |
| Hole size | 5,5 x 7 |
| Halogen-free | yes |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 50 mm |
| Distance to the wall | no |
| Version for | Two-lobe |
| Fastening type | Screw hole |
| Dimension | 50mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
Environmental Data
0,1508 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1508 kg CO2e / 1 Piece |
|---|
