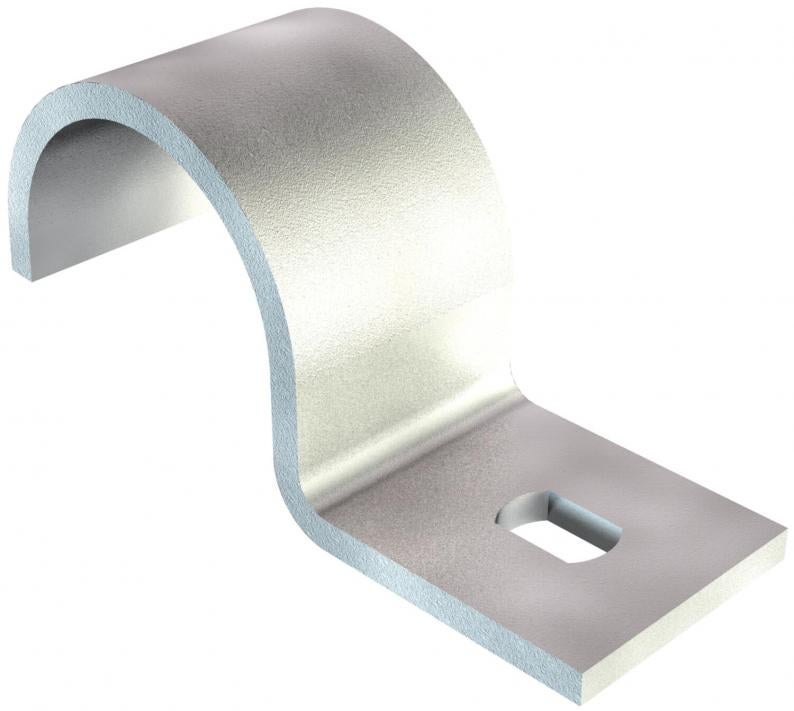

Fastening clip 822, heavy duty, FT
Type 822 47 FT
|Item no. 1014366
|EAN 4012195014232
Item no. / Type
For diameter
Smallest selling unit: 100 piece
100piece
piece
Description
Fastening clip, single-lobe, 47 mm
Technical data
Dimensions
| Length | 81 mm |
|---|---|
| Width | 25 mm |
| Height | 45 mm |
| Dimension L | 30 mm |
| Dimension A | 13 mm |
| Dimension H | 45 mm |
| Dimension t | 3 mm |
| Dimension b | 25 mm |
| Dimension L1 | 81 mm |
| Dimension D | 47 mm |
Technical data
| Material thickness | 3 mm |
|---|---|
| For diameter | 47 |
| Hole size | 6,5 x 10 |
| Halogen-free | yes |
| Size | PG36 |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Nominal diameter | 47 mm |
| Distance to the wall | no |
| Version for | Single-lobe |
| Fastening type | Screw hole |
| Dimension | 47mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
0,1614 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1614 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
For diameter
Item no.
822 6 FT
6
1014005
822 10 FT
10
1014013
822 12 FT
12
1014021
822 14 FT
14
1014048
822 16 FT
15,2
1014099
822 18 FT
18,6
1014110
822 20 FT
20
1014137
822 22.5 FT
22,5
1014161
822 28.3 FT
28,3
1014218
822 37 FT
37
1014293
822 47 FT
47
1014366
822 25 FT
25
1014501
822 32 FT
32
1014528
822 40 FT
40
1014536
822 50 FT
50
1014544
822 63 FT
63
1014552
