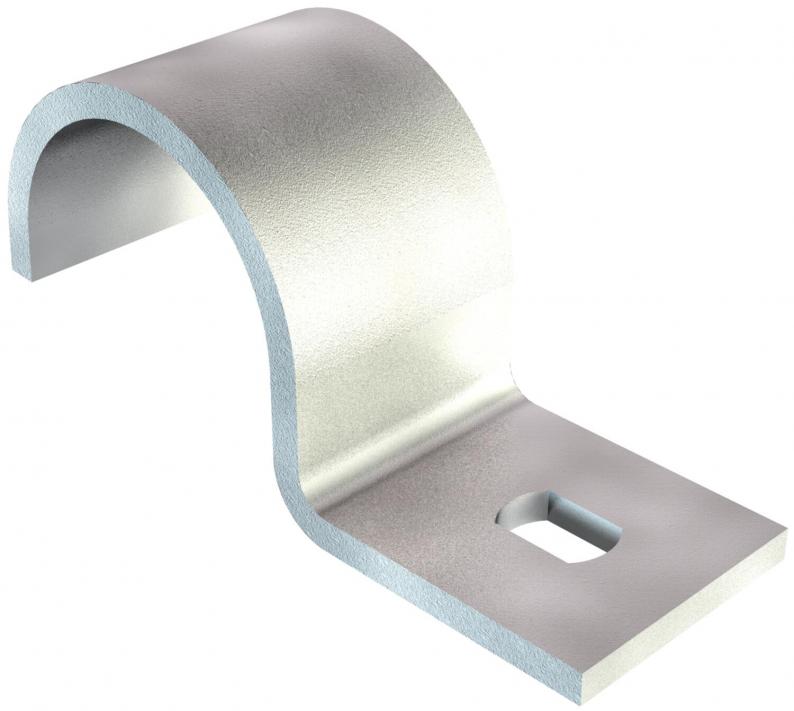

Fastening clip 822, heavy duty, FT

Fastening clip 822, heavy duty, FT

Type 822 6 FT
|
Item no. 1014005
|
EAN 4012195013631
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 100 piece

piece

Description

Fastening clip, single-lobe, 6 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length32 mm
Width20 mm
Height5 mm
Dimension L23,5 mm
Dimension A10 mm
Dimension H5 mm
Dimension t2 mm
Dimension b20 mm
Dimension L132 mm
Dimension D6 mm

Technical data

Material thickness2 mm
For diameter6
Hole size6,5 x 10
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter6 mm
Distance to the wallno
Version forSingle-lobe
Fastening typeScrew hole
Dimension6mm
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

0,0225 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0225 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

For diameter
822 6 FT
Item no.
1014005
For diameter
6
822 10 FT
Item no.
1014013
For diameter
10
822 12 FT
Item no.
1014021
For diameter
12
822 14 FT
Item no.
1014048
For diameter
14
822 16 FT
Item no.
1014099
For diameter
15,2
822 18 FT
Item no.
1014110
For diameter
18,6
822 20 FT
Item no.
1014137
For diameter
20
822 22.5 FT
Item no.
1014161
For diameter
22,5
822 28.3 FT
Item no.
1014218
For diameter
28,3
822 37 FT
Item no.
1014293
For diameter
37
822 47 FT
Item no.
1014366
For diameter
47
822 25 FT
Item no.
1014501
For diameter
25
822 32 FT
Item no.
1014528
For diameter
32
822 40 FT
Item no.
1014536
For diameter
40
822 50 FT
Item no.
1014544
For diameter
50
822 63 FT
Item no.
1014552
For diameter
63
