Fastening clip 823, heavy duty

Fastening clip 823, heavy duty

Type 823 18.3 FT
|
Item no. 1015117
|
EAN 4012195015192
Show all variants
Item no. / Type
For diameter

Smallest selling unit: 50 piece

piece

Description

Fastening clip, double-lobe, 19 mm
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

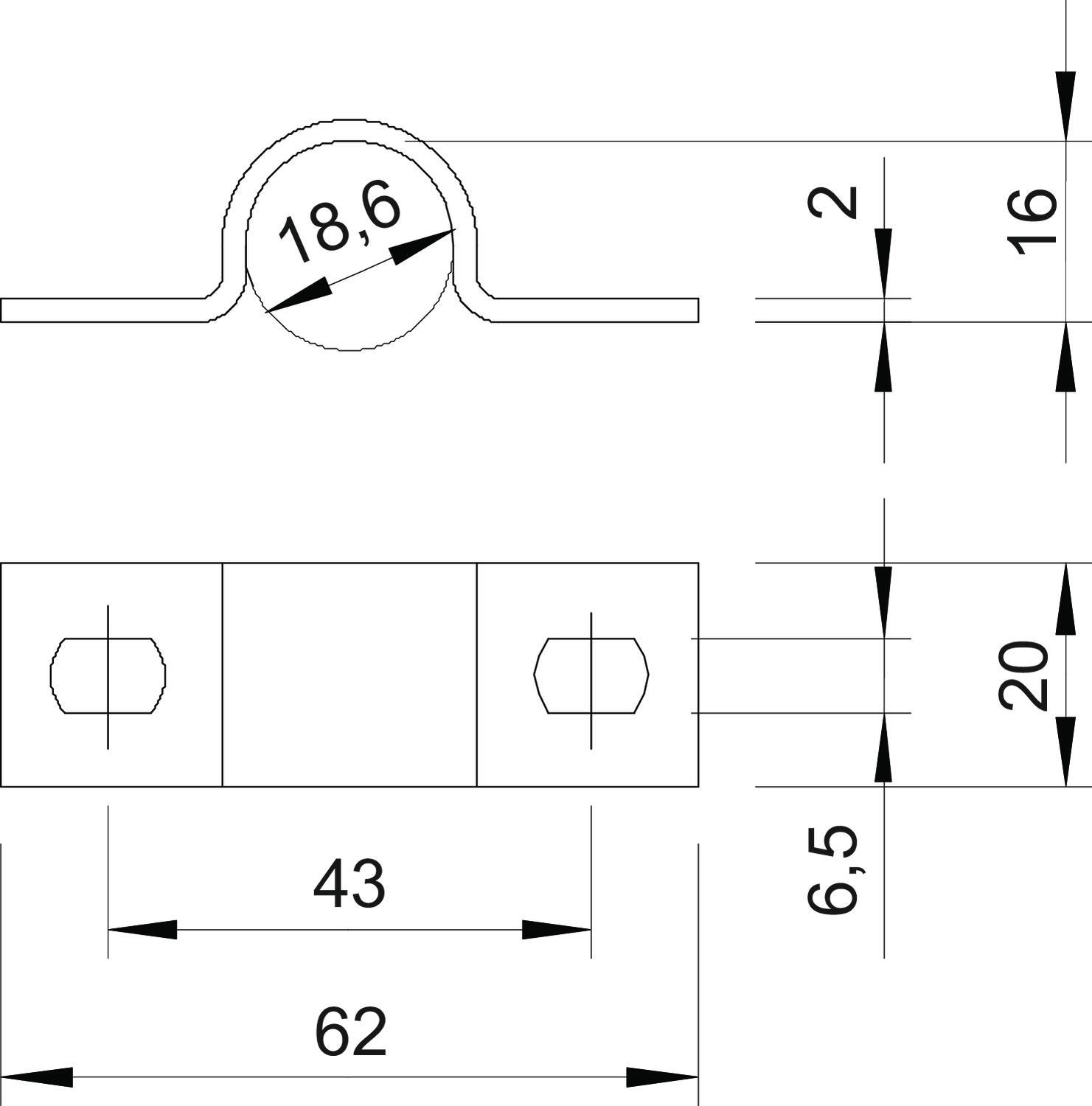

Dimensions

Length62 mm
Width20 mm
Height16 mm
Dimension A62 mm
Dimension d6,5 mm
Dimension B43 mm
Dimension H16 mm
Dimension t2 mm
Dimension b20 mm
Dimension e10 mm
Dimension D18,6 mm

Technical data

Material thickness2 mm
For diameter18,6
Hole size6,5 x 10
Halogen-freeyes
UV-resistantyes
Plastic-coveredno
Suitable in fire protection areano
Number of cables/pipes1
Nominal diameter18,6 mm
Distance to the wallno
Version forTwo-lobe
Fastening typeScrew hole
Dimension19mm
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

0,0591 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0591 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

For diameter
823 16 FT
Item no.
1015095
For diameter
16
823 18.3 FT
Item no.
1015117
For diameter
18,6
823 20 FT
Item no.
1015133
For diameter
20
823 22.5 FT
Item no.
1015168
For diameter
22,5
823 28.3 FT
Item no.
1015214
For diameter
28,3
823 37 FT
Item no.
1015303
For diameter
37
823 47 FT
Item no.
1015362
For diameter
47
823 54 FT
Item no.
1015427
For diameter
54
823 59.3 FT
Item no.
1015486
For diameter
59,3
823 25 FT
Item no.
1015494
For diameter
25
823 32 FT
Item no.
1015496
For diameter
32
823 40 FT
Item no.
1015498
For diameter
40
823 50 FT
Item no.
1015500
For diameter
50
823 63 FT
Item no.
1015508
For diameter
63
