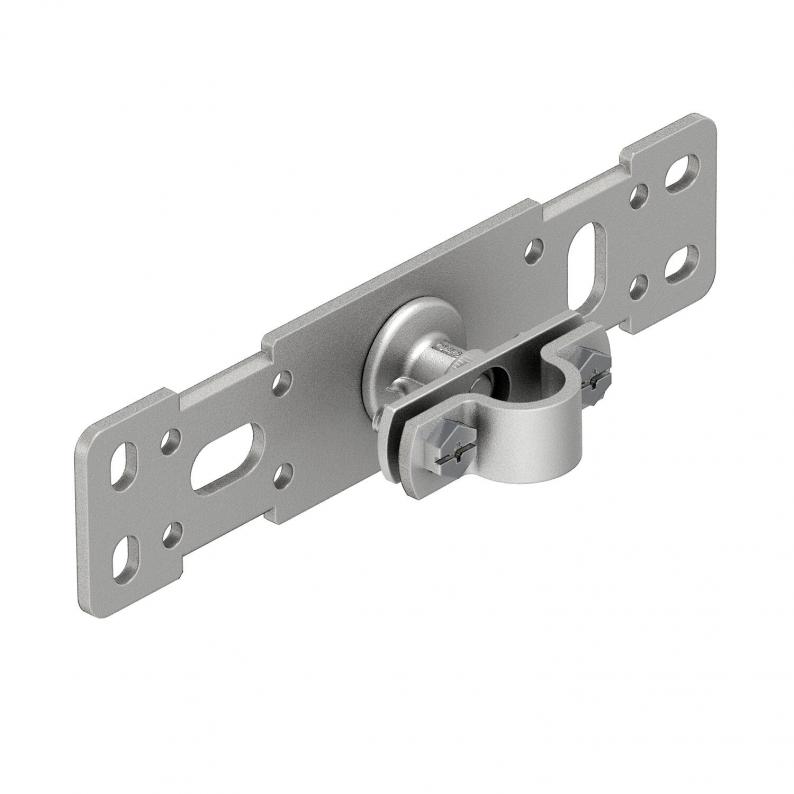

Fastening plate
Type 101 BP-16
|Item no. 5408984
|EAN 4012195613367
Item no. / Type
5408984 / 101 BP-16
Dimension B
40 mm
Dimension H
42 mm
Dimension d min.
16 mm
Smallest selling unit: 1 piece
1piece
piece
Description
• To mount insulating rods on constructions or walls
• Plate made of VA stainless steel
• Holder and crosspiece for 16 and 20 mm rods and Rd 8−10 mm
• Plate made of VA stainless steel
• Holder and crosspiece for 16 and 20 mm rods and Rd 8−10 mm
Technical data
Dimensions
| Length | 175 mm |
|---|---|
| Dimension L | 175 mm |
| Dimension B | 40 mm |
| Dimension H | 42 mm |
| Dimension d min. | 16 mm |
Technical data
| Connection | Round conductor |
|---|---|
| Boyut | 175x40x42 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,4345 kg CO2e / 1 Piece |
|---|
