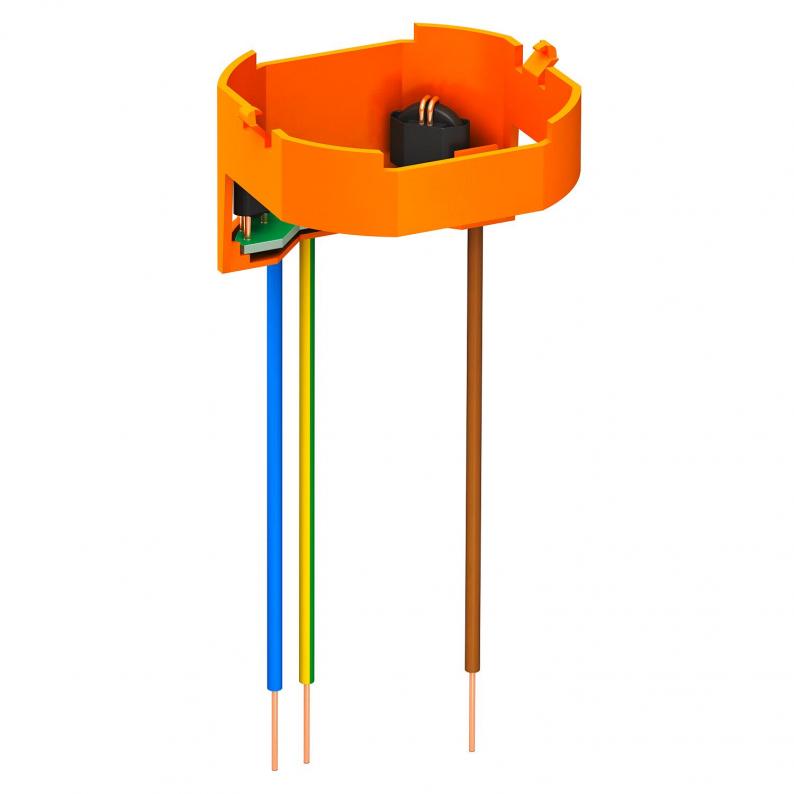

Fine power protection 230 V protective contact sockets
Type ÜSM-ST-230-1P+PE
|Item no. 5092441
|EAN 4012196426690
Item no. / Type
5092441 / ÜSM-ST-230-1P+PE
Maximum continuous voltage AC
255 V
Smallest selling unit: 1 piece
1piece
piece
Description
Surge protection / fine power protection, type 3, to EN 61643-11 for protective contact sockets.
• Thermal cut-off unit with acoustic defect signalling
• Y protection circuit for increased safety
• Mounting through snapping onto the support ring of the socket
• Halogen-free plastic (UL 94 V-0)
• Labelling of the socket with supplied sign
Application: For retrofitting on standard Schuko sockets.
• Thermal cut-off unit with acoustic defect signalling
• Y protection circuit for increased safety
• Mounting through snapping onto the support ring of the socket
• Halogen-free plastic (UL 94 V-0)
• Labelling of the socket with supplied sign
Application: For retrofitting on standard Schuko sockets.
Technical data
Technical data
| Kutup sayısı | 2 |
|---|---|
| Ağ formu | Other |
| Cihazda sinyalizasyon | Acoustic |
| Koruma seviyesi damar/toprak | 1500 V |
| Koruma sınıfı | IP20 |
| Remote signalling | no |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Koruma seviyesi [L-N] | ≤1500 |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 3 kA |
| Installation type | Wall socket |
| Max. mains-side overcurrent protection | 16 |
| Version for | Acoustic function display |
| OBO_Nominal load current (input/output terminal) | 16 A |
| Operating temperature, min. | -5 °C |
| Operating temperature, max. | 40 °C |
| Bağlantı kablosu uzunluğu | 0,1 m |
| SPD to IEC 61643-1 | Class III |
| EN 61643-11 standardına göre talep sınıfı | Type 3 |
| Lightning protection zone LPZ | 2→3 |
| Maximum discharge current (8/20 μs) | 5 kA |
| Devreye girme süresi | <25 ns |
| Maximum back-up fuse | 16 A |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 40 °C |
| Boyut | 230V |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 5 kA |
|---|---|
| Combined voltage protection level [L-PE] | 1500 kV |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0333 kg CO2e / 1 Piece |
|---|
