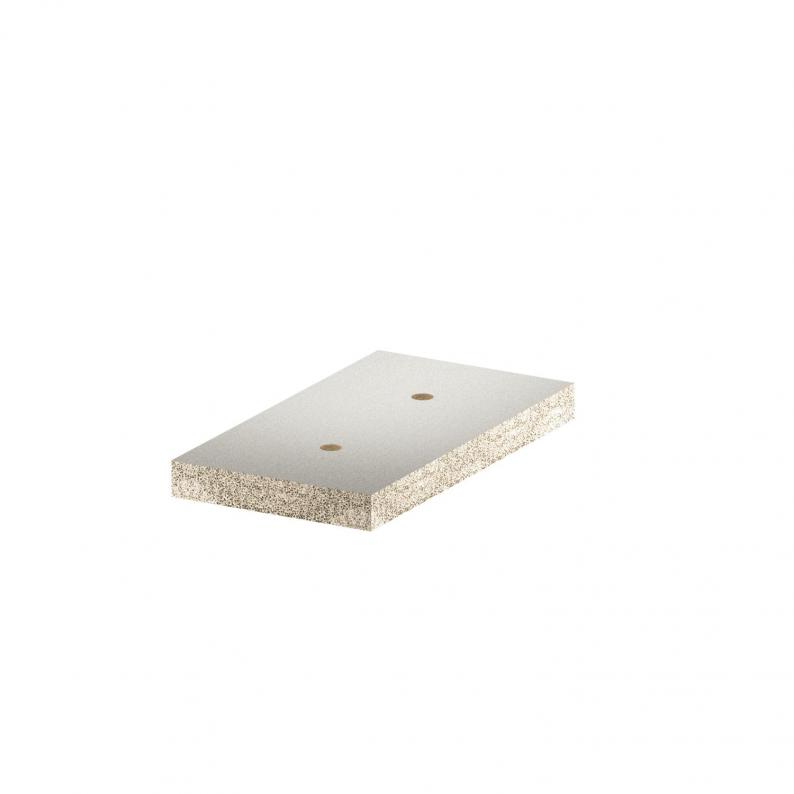

Fire protection plate, double perforated
Type GLB-PG3
|Item no. 7205464
|EAN 4012196814190
Item no. / Type
7205464 / GLB-PG3
Length
220 mm
Dimension L
220 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Perforated fire protection plate (material class A1) as an effective panelling measure to fasten on supporting wooden components for the maintenance of electrical function according to DIN 4102 Part 12. Made of fibreglass light concrete which is resistant to water and frost.
Technical data

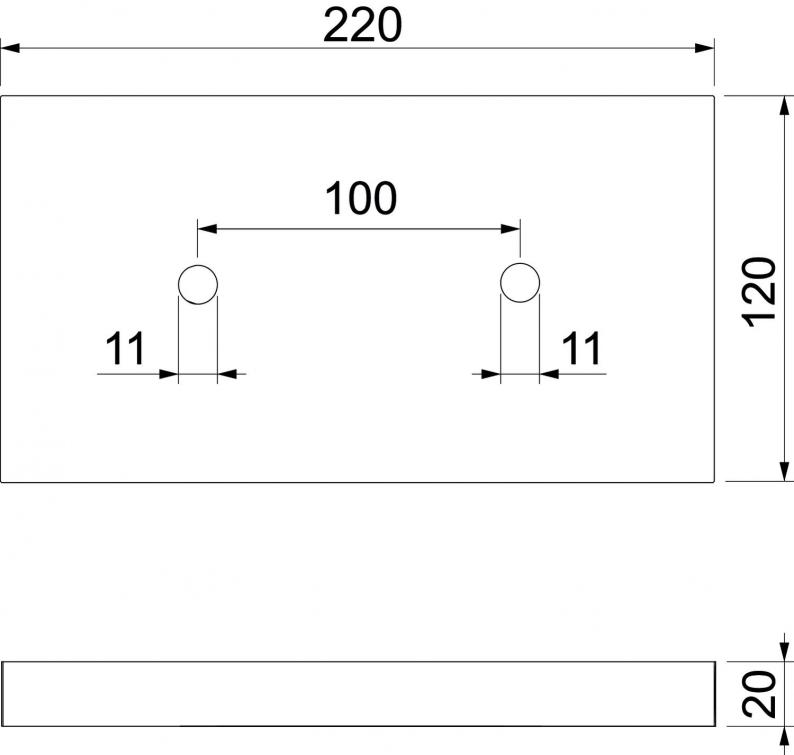

Dimensions
| Length | 220 mm |
|---|---|
| Width | 120 mm |
| Height | 20 mm |
| Dimension L | 220 mm |
Technical data
| Type of accessory | Fire protection plate |
|---|---|
| Boyut | 220x120x20 |
| Material | Fibreglass lightweight concrete |
| Colour | Grey |
