Fixed earthing terminal with connection bolt and double thread A4

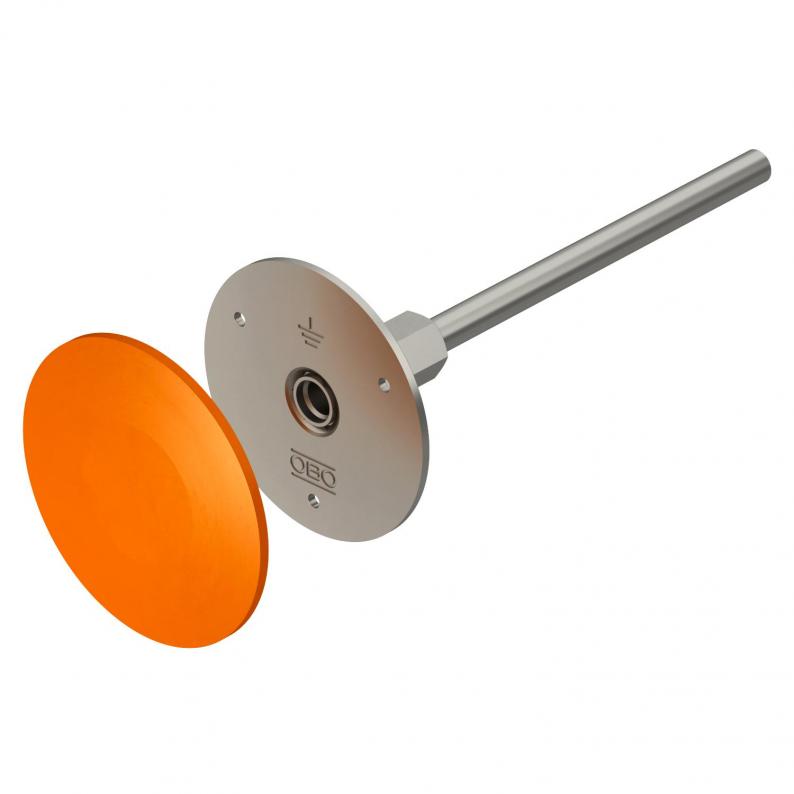

Fixed earthing terminal with connection bolt and double thread A4

Type 205 DG L180 V4A
|
Item no. 5420022
|
EAN 4012196505890
Show all variants
Item no. / Type
Material of the connection bolt

Smallest selling unit: 10 piece

piece

Description

• For connecting to earthing systems, conductors and reinforcements
• Contact plate: Ø 79 mm from stainless steel, rustproof (V4A)
• With M10 and M12 thread
• Including plastic cover for easy installation
• With connection bolt: Ø 10 mm (V4A)
• Tested to VDE 0185-561-1 (EN 62561-1)
• Short-circuit current tested


  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

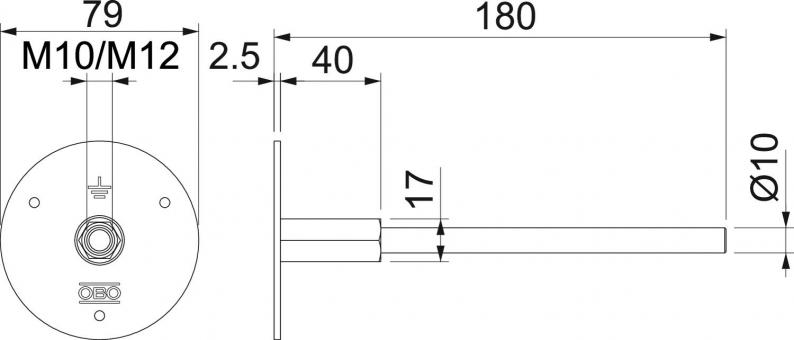

Dimensions

Length180 mm
Diameter of the contact plate79 mm

Technical data

ThreadM10/M12
Diameter of the connection bolt10 mm
Material of the connection boltStainless steel, rustproof (V4A)
Short-circuit current (50 HZ)(1 s;≤300°C)3,3 kA
Lightning current carrying capacityH/100 kA
DimensionM10/M12
MaterialStainless steel 1.4404

Environmental Data

1,4557 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,4557 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,4557 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Material of the connection bolt
205 DG L180 V4A
Item no.
5420022
Material of the connection bolt
Stainless steel, rustproof (V4A)
205 DG L180 FT
Item no.
5420024
Material of the connection bolt
Steel, hot galvanised
