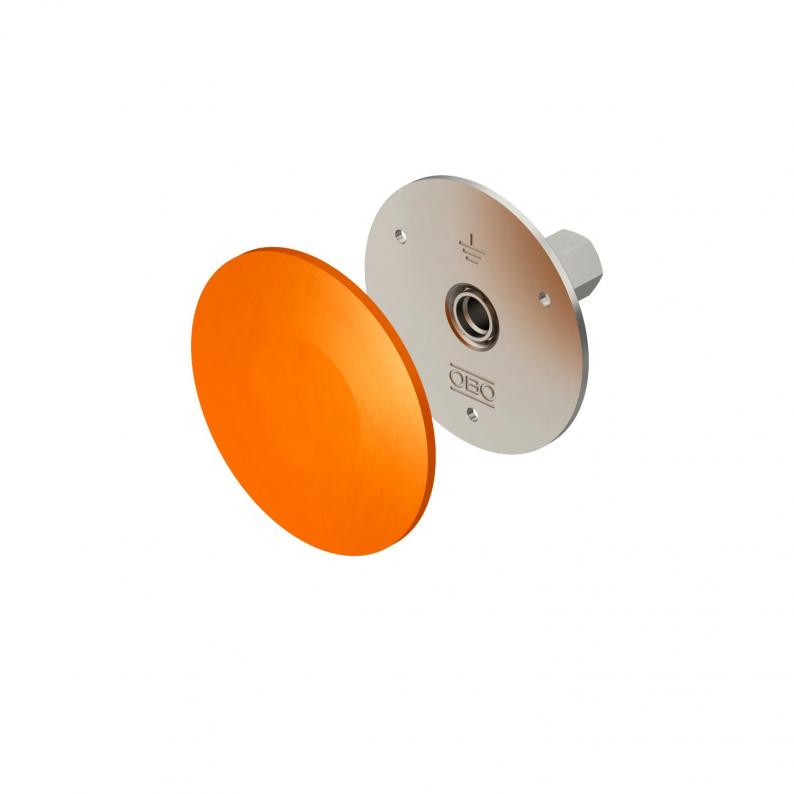

Fixed earthing terminal with double thread
Type 205 DG V4A
|Item no. 5420020
|EAN 4012196505869
Item no. / Type
5420020 / 205 DG V4A
Smallest selling unit: 10 piece
10piece
piece
Description
• For connecting to earthing systems, conductors and reinforcements
• Contact plate: Ø 79 mm from stainless steel, rustproof (V4A)
• Double thread M10/M12
• Including plastic cover for easy installation
• Contact plate: Ø 79 mm from stainless steel, rustproof (V4A)
• Double thread M10/M12
• Including plastic cover for easy installation
Technical data

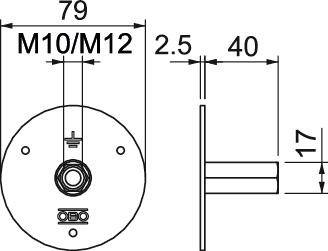

Dimensions
| Length | 180 mm |
|---|---|
| Diameter of the contact plate | 79 mm |
Technical data
| Vida dişi | M10/M12 |
|---|---|
| Short-circuit current (50 HZ)(1 s;≤300°C) | 6,2 kA |
| Lightning current carrying capacity | H/100 kA |
| Boyut | M10/M12 |
| Material | Stainless steel 1.4404 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,0155 kg CO2e / 1 Piece |
|---|
