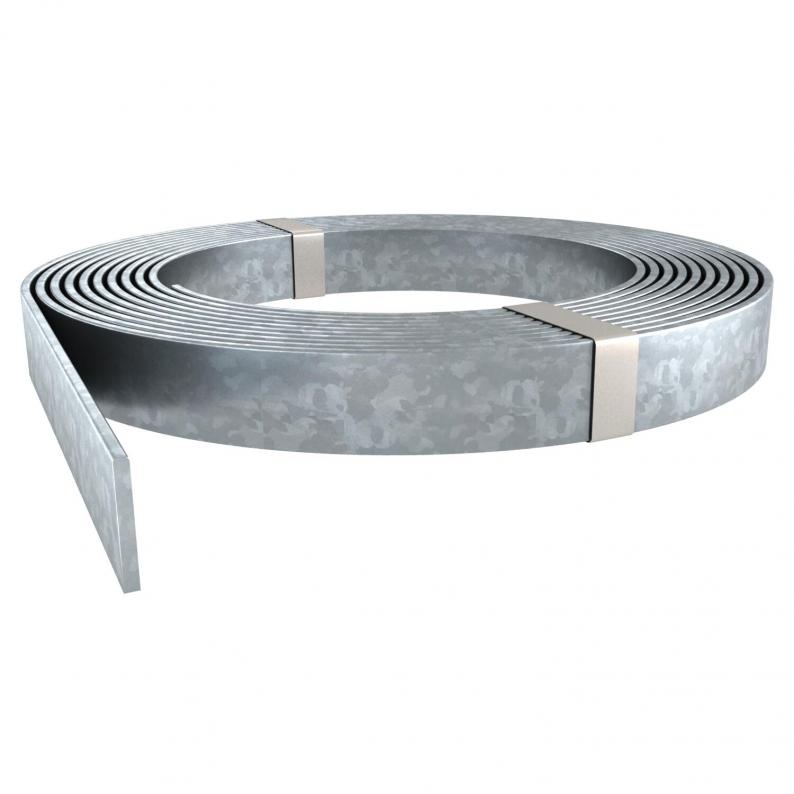

Flat conductor, galvanised steel

Flat conductor, galvanised steel

Type 5052 DIN 30X3.5
|
Item no. 5019347
|
EAN 4012195680482
Show all variants
Item no. / Type
Width
Height

Smallest selling unit: 60 m

m

Description

5052: Makaralar halinde yassı iletken/çelik şerit (DIN EN 50164-2'ye uygun)

• DIN 48801
• Çinko kaplama: 500 g/m² (yaklaşık 70 µm)

Kullanım alanı: Yıldırımdan korunma ve topraklama tesisatları
  • Yıldırım akımı test edilip onaylandı

Technical data

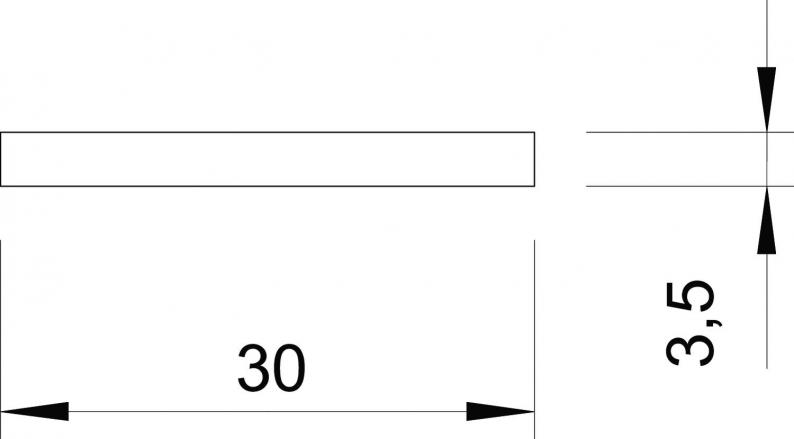

Dimensions

Width30 mm
Height3,5 mm
Dimension B30 mm
Dimension H3,5 mm

Technical data

Normal halka (kg)50
Kesit105 mm²
Normal halka (m)60
Boyut30x3,5mm
SurfaceHot-dip galvanised
MaterialSteel
Length tolerance ±5 %

Accessories

Mounting accessories
Type
252 8-10 FT

Smallest selling unit: 25 piece

piece

Type
252 8-10X16 FT

Smallest selling unit: 25 piece

piece

Type
253 8X8

Smallest selling unit: 25 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Height
5052 DIN 20X2.5
Item no.
5019340
Width
20
Height
2,5
5052 DIN 25X3
Item no.
5019342
Width
25
Height
3
5052 DIN 30X3
Item no.
5019344
Width
30
Height
3
5052 DIN 30X3.5
Item no.
5019345
Width
30
Height
3,5
5052 DIN 30X3.5
Item no.
5019347
Width
30
Height
3,5
5052 DIN 30X4
Item no.
5019350
Width
30
Height
4
5052 DIN 40X4
Item no.
5019355
Width
40
Height
4
5052 DIN 40X5
Item no.
5019360
Width
40
Height
5
