Flat mounting plate DD
Type MP FL DD
|Item no. 7085108
|EAN 4012195163268
Item no. / Type
7085108 / MP FL DD

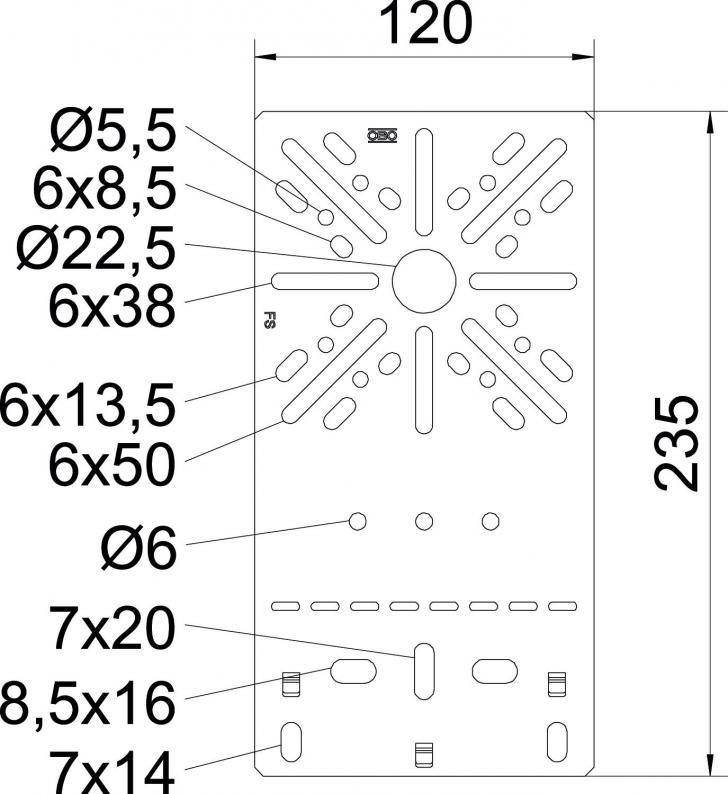

Width
120 mm
Height
235 mm
Smallest selling unit: 1 piece
1piece
piece
Description

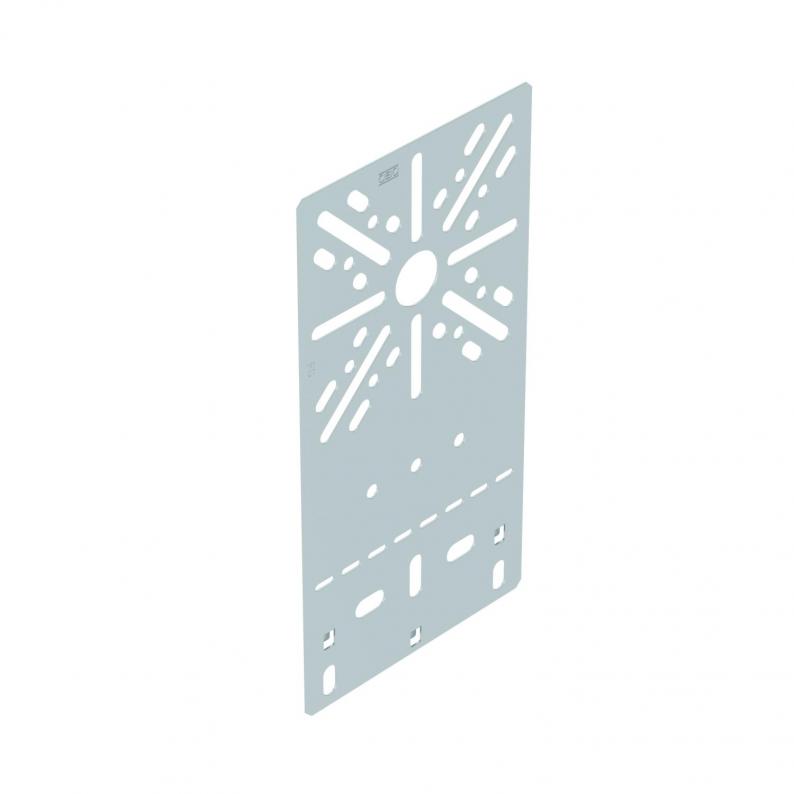

Flat mounting plate, for fastening on the side rail of the cable tray.
Type B9/T junction boxes can be mounted very easily by inserting the plug supplied into the centre hole on the mounting plate.
Marked shackles provide rapid fixing.
Please order the fixing bolt, type FRS B6 x 12, separately.
Technical data
Dimensions
| Width | 120 mm |
|---|---|
| Height | 235 mm |
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Vertical |
| Boyut | 235x120 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,5047 kg CO2e / 1 Piece |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 2007831
Fastening pin for mounting platesType
T-S MST
Smallest selling unit: 100 piece
100piece
piece
