Flush-mount unit for data technology, type A
Type DTE-RW G2A1
|Item no. 6119494
|EAN 4012196439041
Item no. / Type
6119494 / DTE-RW G2A1
With dust protection
yes
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description

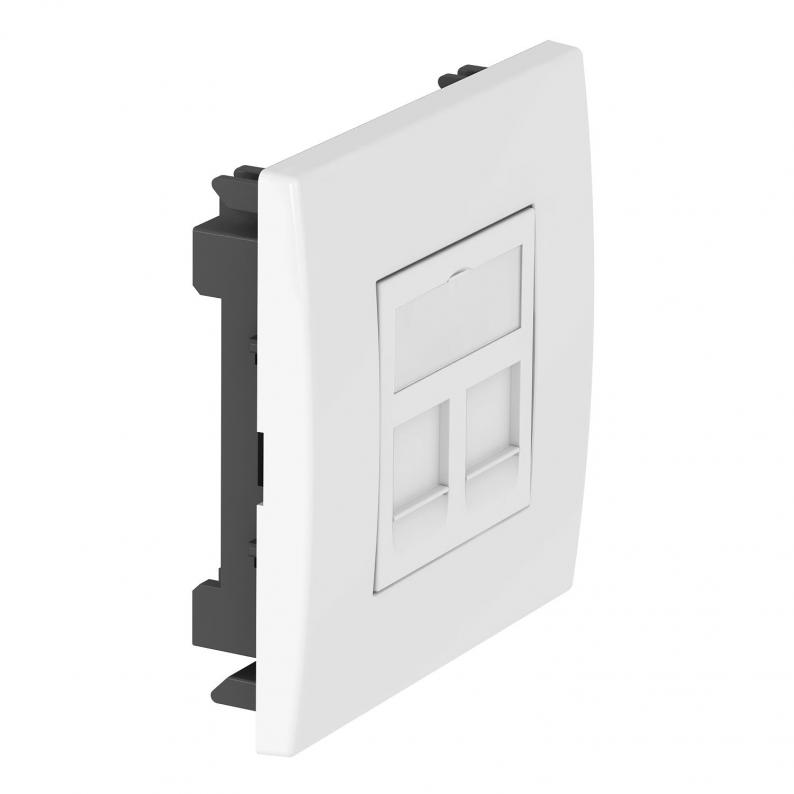

Installation unit to accommodate two type A data technology modules, suitable for installation in Rapid 80 device installation trunking systems and ISS service poles. The type A data technology support is suitable for accepting the following data connection modules: AMP TYCO (without dust protection cap): SL Series 110Connect and SL Series Toolless; Brand-Rex: modules with item numbers ending in …JAKS000CR and …JAKU002; Nexans: LANmark RJ45 with blue adapter clip, LANmark GG45 with metal clip.
Installation unit, consisting of:
- Mounting support, single, type 71MT1 45
- Data technology support, straight outlet, type DTG-2A, colour: see table
- Cover frame AR45, single, without labelling panel, colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.
Installation unit, consisting of:
- Mounting support, single, type 71MT1 45
- Data technology support, straight outlet, type DTG-2A, colour: see table
- Cover frame AR45, single, without labelling panel, colour: pure white
For installation in Rapid 80 device installation trunking and ISS service poles.
Technical data

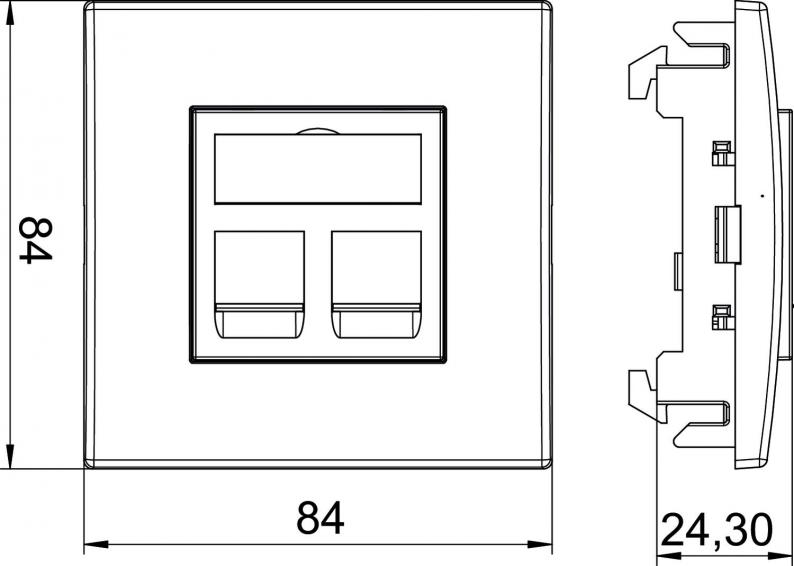

Dimensions
| Length | 84 mm |
|---|---|
| Width | 84 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halojen İçermez | yes |
| Çekme yükü azaltma imkanı | no |
| Koruma sınıfı | IP20 |
| Support ring | no |
| With dust protection | yes |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 24,3 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with full cover plate |
| Use | Modular jack |
| Labelling panel | With labelling panel |
| Mounting type | Device installation duct |
| Boyut | 84x84x59mm |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,4201 kg CO2e / 1 Piece |
|---|
