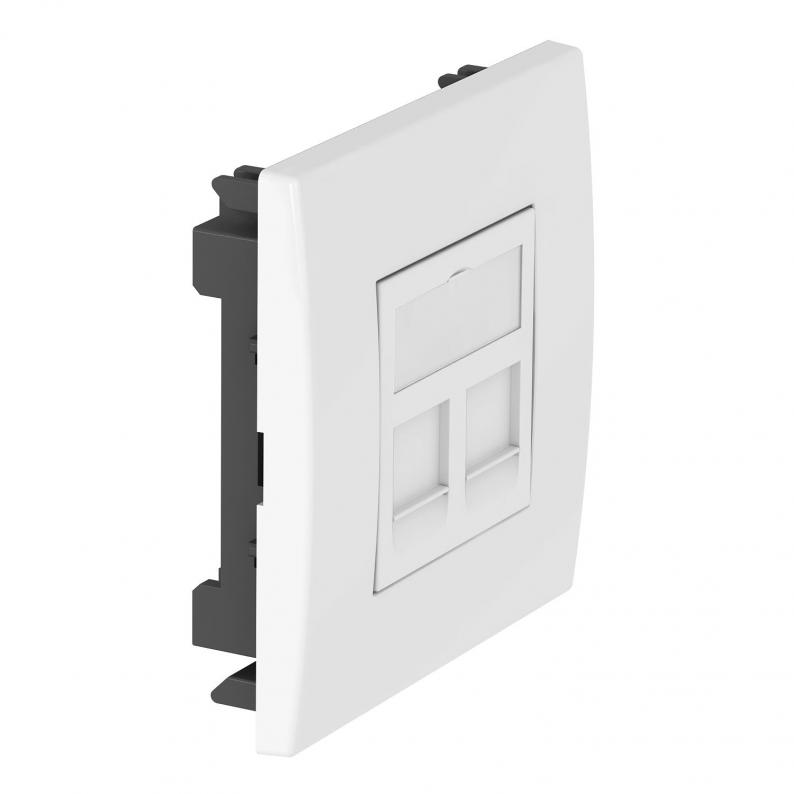

Flush-mount unit for data technology, type RM

Flush-mount unit for data technology, type RM

Type DTE-RW G2RM1
|
Item no. 6119490
|
EAN 4012196410415
Show all variants
Item no. / Type
6119490 / DTE-RW G2RM1
With dust protection
yes
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

Installation unit to accommodate two type RM data technology modules, suitable for installation in Rapid 80 device installation trunking systems and ISS service poles. The type RM data technology support is suitable for accepting the following data connection modules: OBO (type): ASM-C5, ASM-C5 G, ASM-C6 and ASM-C6 G; R&M: Cat. 5 and Cat. 6 modules without support plate.


Installation unit, consisting of:
- Mounting support, single, type 71MT1 45
- Data technology support, straight outlet, type DTG-2RM, colour: see table
- Cover frame AR45, single, without labelling panel, colour: pure white



For installation in Rapid 80 device installation trunking and ISS service poles.
  • CO₂ footprint (PCF)

Technical data

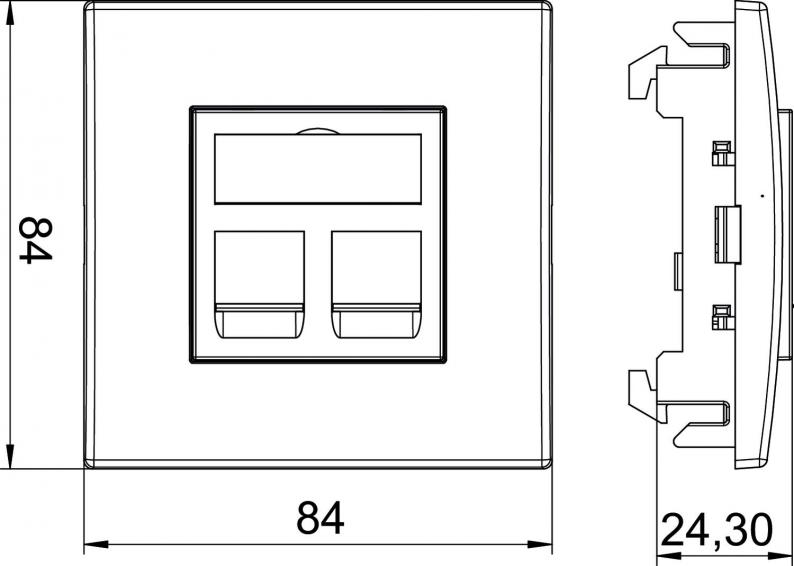

Dimensions

Length84 mm
Width84 mm

Technical data

Hinged coverno
Halojen İçermezyes
Çekme yükü azaltma imkanıno
Koruma sınıfıIP20
Support ringno
With dust protectionyes
With printed labelno
Lamp-wire connectorno
Depth24,3 mm
Surface versionMatt
Transparentno
CombinationBasic element with full cover plate
UseModular jack
Labelling panelWith labelling panel
Mounting typeDevice installation duct
Boyut84x84x59mm
MaterialPolycarbonate
ColourPure white; RAL 9010

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,4299 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

DTE-RW G2RM1
Item no.
6119490
With dust protection
evet
Colour
Pure white; RAL 9010
