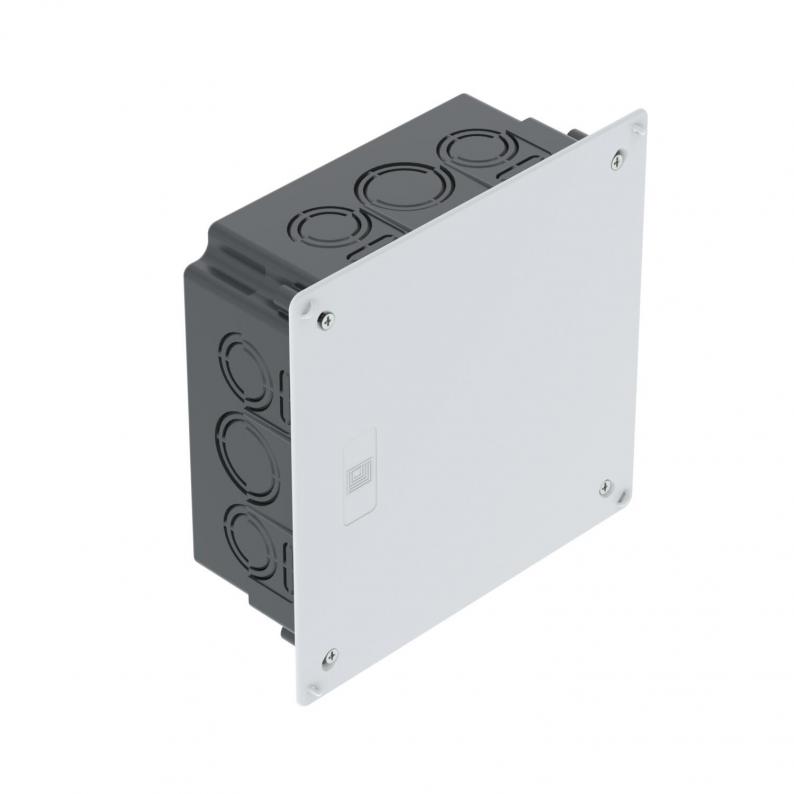

Flush-mounted connection box 150
Type UV 150 K
|Item no. 2003124
|EAN 4012195023777
Item no. / Type
2003124 / UV 150 K
Height
65 mm
No. of entries
24
Smallest selling unit: 16 piece
16piece
piece
Description
Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 65 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.
• 4 side combination pipe entries of Ø 34.6/28.5 mm
• 8 side combination pipe entries of Ø 28.5/21.5 mm
• 8 side entries for flat cables/ribbon cables
• 2 entries of Ø 34.6 and 28.5 mm in the base
• 2 entries for flat cables/ribbon cables at the base
• 4 side combination pipe entries of Ø 34.6/28.5 mm
• 8 side combination pipe entries of Ø 28.5/21.5 mm
• 8 side entries for flat cables/ribbon cables
• 2 entries of Ø 34.6 and 28.5 mm in the base
• 2 entries for flat cables/ribbon cables at the base
Technical data
Dimensions
| Length | 150 mm |
|---|---|
| Width | 150 mm |
| Height | 65 mm |
| Dimension A | 200 mm |
| Dimension B | 170 mm |
| Dimension H | 65 mm |
Technical data
| Type of entry | NYM cables, data cables and corrugated pipes |
|---|---|
| Impact-resistant | no |
| Floor height, min. | 67 mm |
| Halogen-free | no |
| No. of entries | 24 |
| Entry from rear | no |
| Protection rating | IP20 |
| Sealable | no |
| Maintain electrical functions | Without |
| Type of housing penetration | Pre-marking |
| With screening | no |
| With bolts | no |
| Airtight | no |
| With nail strap | no |
| Support | Without |
| Nominal cross-section, min. | 16 mm² |
| Shape | Square |
| Equipment | Without |
| Cover | Not transparent |
| Cover fastening | Screwed |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | 150x150x65 |
| Material | Polystyrene |
| Colour | Black |
| Rated voltage | 400 V |
Environmental Data
0,5375 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5375 kg CO2e / 1 Piece |
|---|
