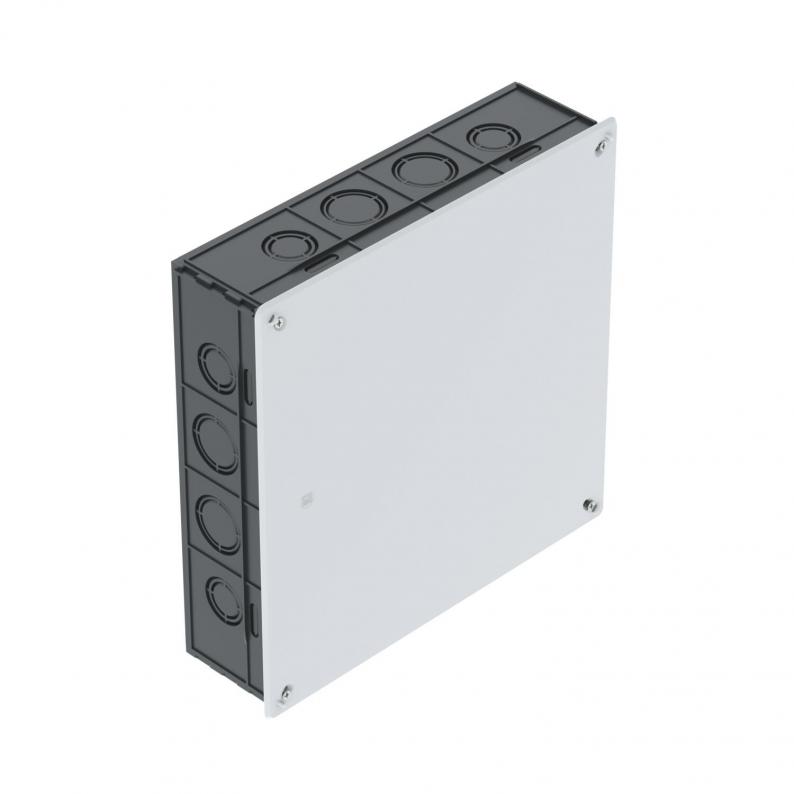

Flush-mounted connection box 250

Flush-mounted connection box 250

Type UV 250 K
|
Item no. 2003136
|
EAN 4012195024071
Show all variants
Item no. / Type
2003136 / UV 250 K
Height
65 mm
No. of entries
40

Smallest selling unit: 10 piece

piece

Description

Flush-mounted connection box for clamping terminals, for use in masonry with an installation depth of at least 65 mm. With cover and cover screws (15 mm). Flat cover edge, roughened surface.

• 8 side combination pipe entries of Ø 34.6/28.5 mm

• 8 side combination pipe entries of Ø 28.5/21.5 mm

• 8 side entries for flat cables/ribbon cables
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 20
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length250 mm
Width250 mm
Height65 mm
Dimension A328 mm
Dimension B260 mm
Dimension H65 mm

Technical data

Type of entryNYM cables, data cables and corrugated pipes
Impact-resistantno
Floor height, min.67 mm
Halogen-freeno
No. of entries40
Entry from rearno
Protection ratingIP20
Sealableno
Maintain electrical functionsWithout
Type of housing penetrationPre-marking
With screeningno
With boltsno
Airtightno
With nail strapno
SupportWithout
Nominal cross-section, min.16 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension250x250x65
MaterialPolystyrene
ColourBlack
Rated voltage400 V

Environmental Data

1,6208 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,6208 kg CO2e / 1 Piece
