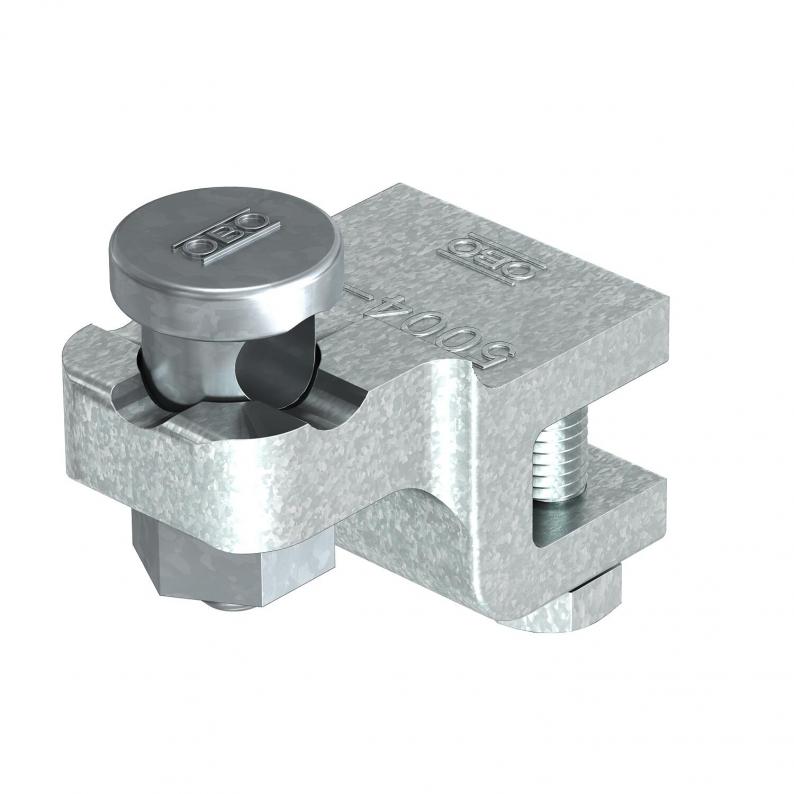

Folding and construction clamp, 12 mm
Type 5004 DIN-FT 12
|Item no. 5304407
|EAN 4012195416357
Item no. / Type
Uyumluluk
Clamping range, max.
Smallest selling unit: 10 piece
10piece
piece
Description
• Flange thickness to 12 mm
• With pre-mounted fix contact clamping screw 5000
• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel
• Terminal block made of malleable iron, hot galvanised

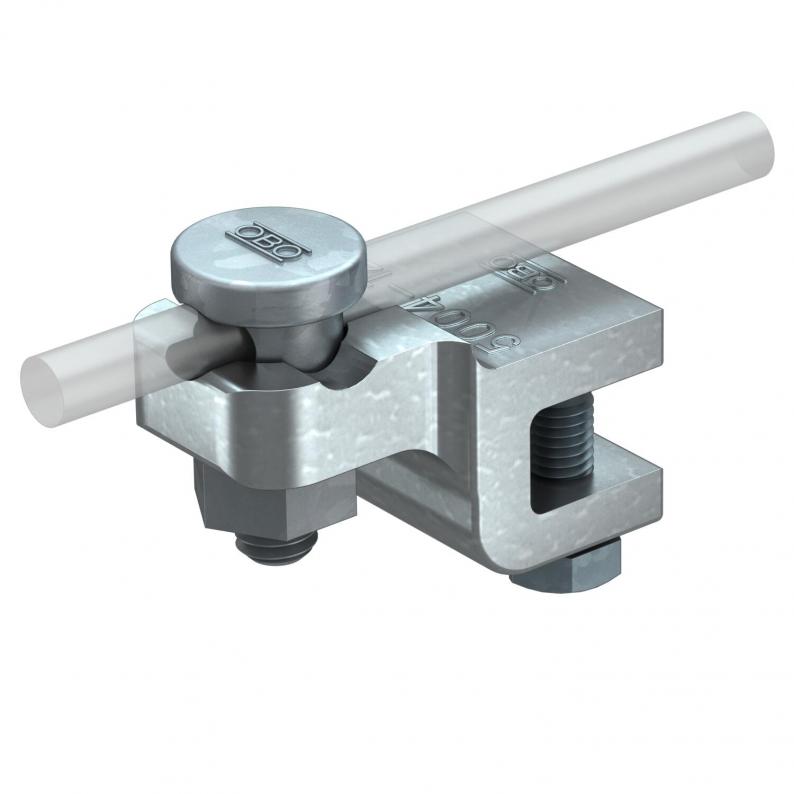

• Mounting of the round conductors either vertical or transverse to structure
• Corresponds to the requirements of DIN VDE 0185-305-3
• With pre-mounted fix contact clamping screw 5000
• 2 hexagonal bolts M8 x 20, bolts made of hot galvanised steel
• Terminal block made of malleable iron, hot galvanised
• Mounting of the round conductors either vertical or transverse to structure
• Corresponds to the requirements of DIN VDE 0185-305-3
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Clamp connector |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 12mm |
| Surface | Hot-dip galvanised |
| Material | Cast steel |
| Clamping range, max. | 12 mm |
Dimensions
| Dimension L | 55 mm |
|---|---|
| Dimension t | 20 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,5329 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Uyumluluk
Clamping range, max.
Clamping range, min.
Item no.
5004 DIN-FT 12
Rd 8-10
12
5304407
5004 DIN-FT 20
Rd 8-10
20
10
5304504
Clamping range, max.
5004 DIN-FT 12
Item no.
5304407
Uyumluluk
Rd 8-10
Clamping range, max.
12
5004 DIN-FT 20
Item no.
5304504
Uyumluluk
Rd 8-10
Clamping range, min.
10
Clamping range, max.
20
