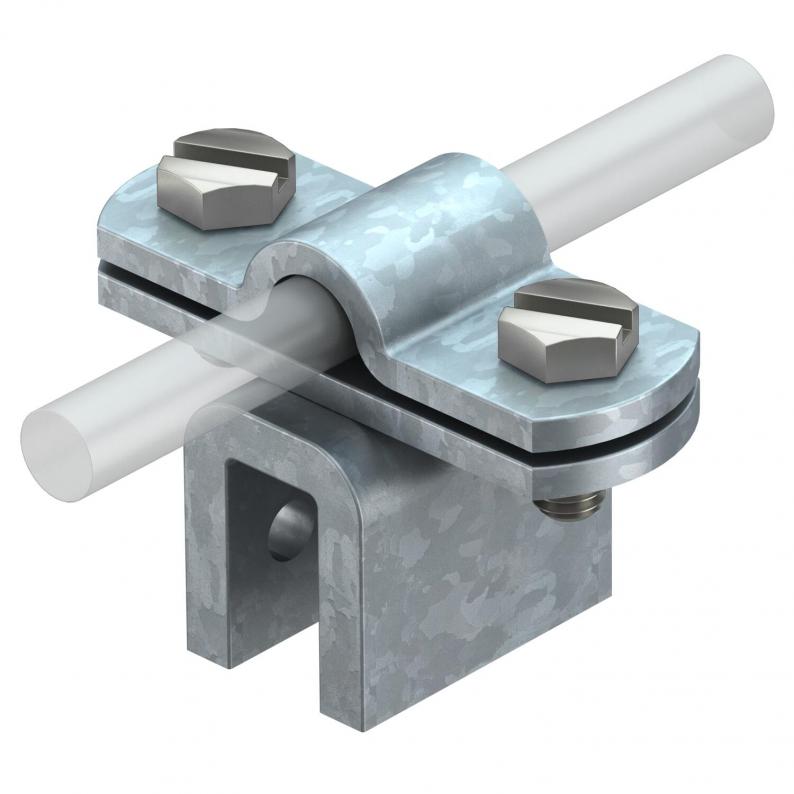

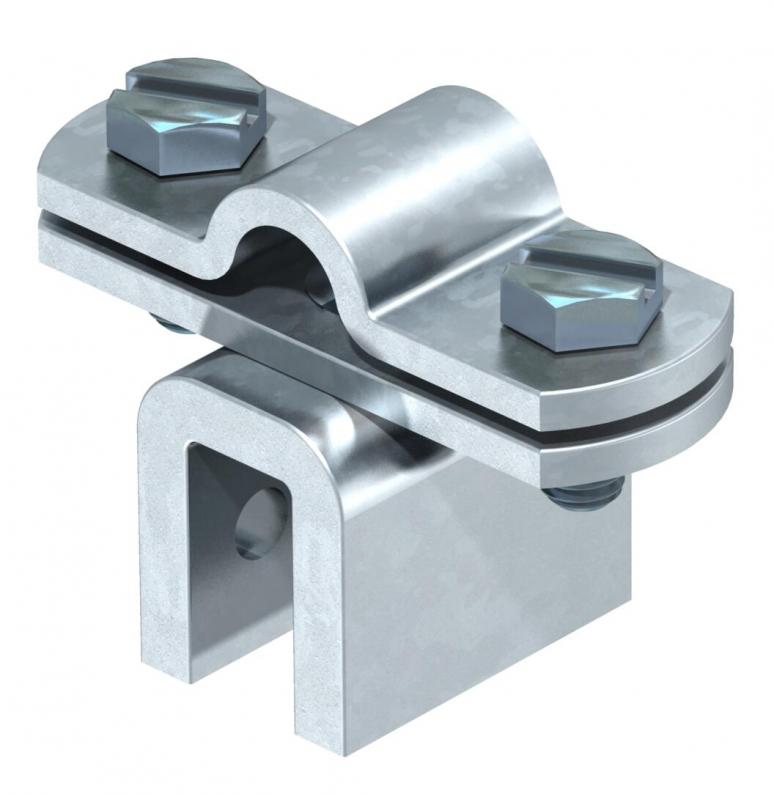

Folding clamp Rd 8-10 up to 10 mm plate thickness FT
Type 270 8-10 FT
|Item no. 5317207
|EAN 4012195420552
Item no. / Type
5317207 / 270 8-10 FT
Uyumluluk
Rd 8-10 mm
Clamping range, max.
10 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• Metal thickness to 10 mm
• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Folding clamp |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8/10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, max. | 10 mm |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,3479 kg CO2e / 1 Piece |
|---|
