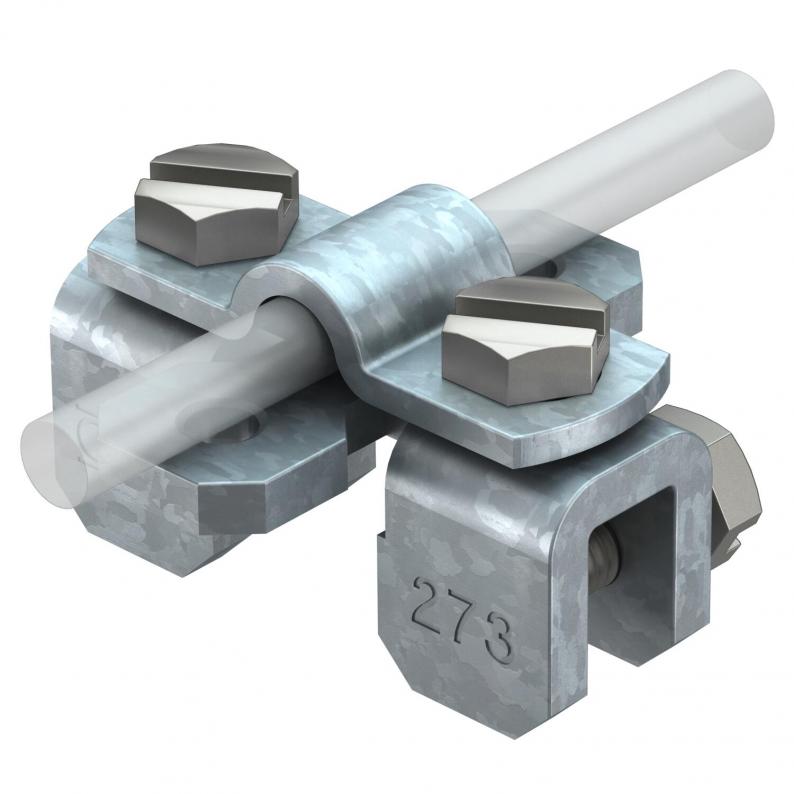

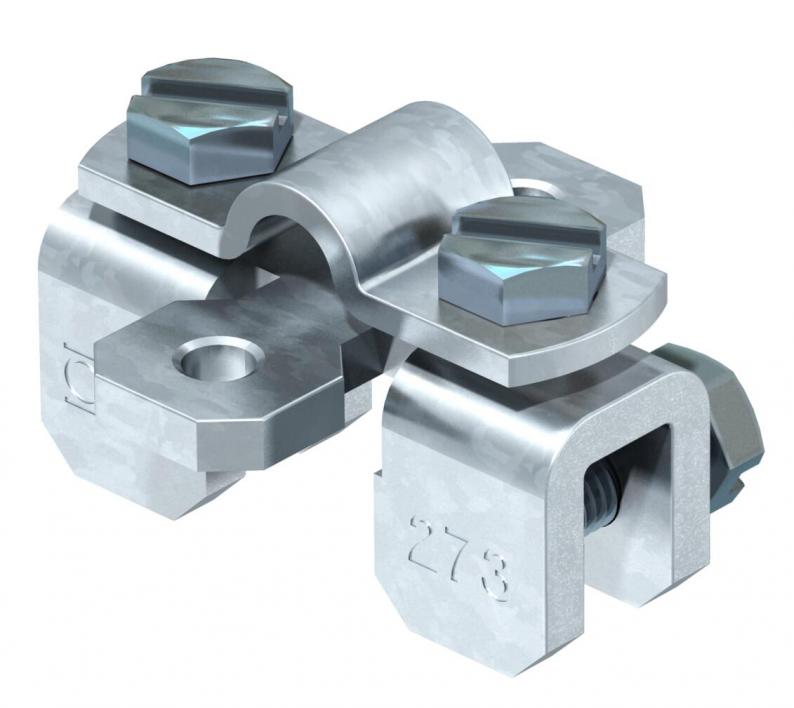

Folding clamp up to 10 mm plate thickness FT
Type 273 8-10
|Item no. 5317223
|EAN 4012195420613
Item no. / Type
5317223 / 273 8-10
Uyumluluk
Rd 8-10 mm
Clamping range, max.
10 mm
Smallest selling unit: 50 piece
50piece
piece
Description
• Plate thickness to 10 mm
• Conductor routing transverse and longitudinal to plate with 2 hexagonal bolts M8 x 10 and 2 hexagonal bolts M8 x 16 (F)
• 273 Cu: with hexagonal bolts, stainless steel (VA)
• Conductor routing transverse and longitudinal to plate with 2 hexagonal bolts M8 x 10 and 2 hexagonal bolts M8 x 16 (F)
• 273 Cu: with hexagonal bolts, stainless steel (VA)
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Folding clamp |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8/10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, max. | 10 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,4836 kg CO2e / 1 Piece |
|---|
