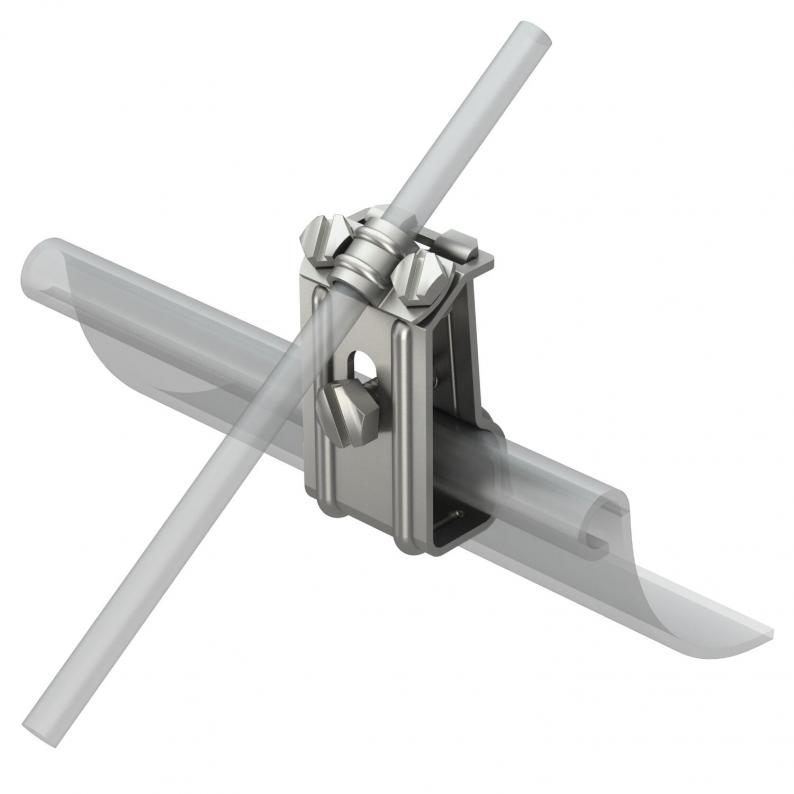

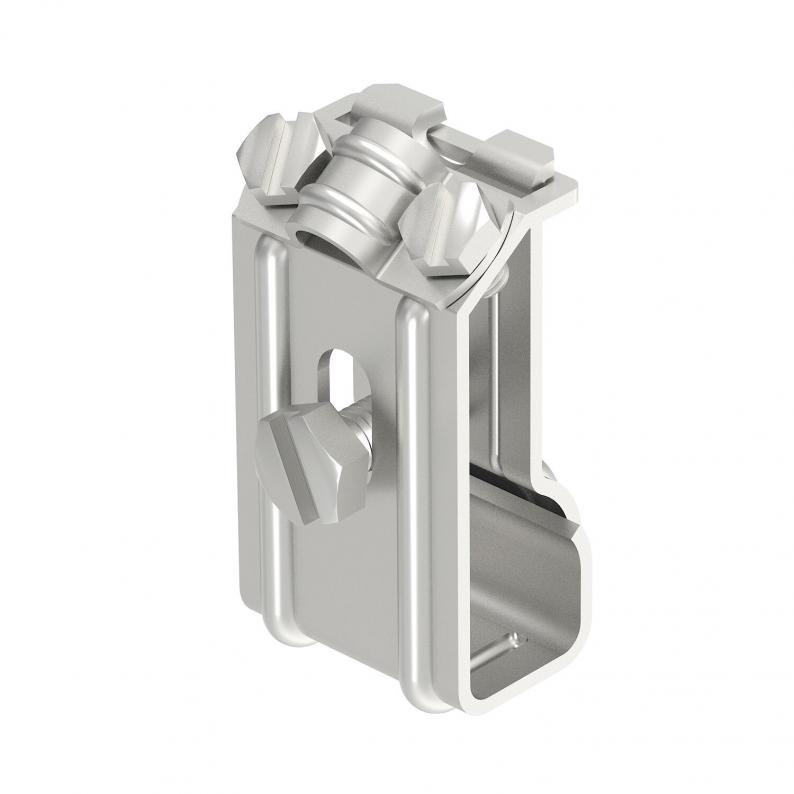

Gutter clamp for all bead thicknesses A2
Type 267 VA
|Item no. 5316324
|EAN 4012195420194
Item no. / Type
5316324 / 267 VA
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Fits all bead thicknesses
• With 1 hexagonal bolt M8 x 30
• 2 hexagonal bolts M6 x 12
• VA version also for use as bimetal conductor (holder)
• With 1 hexagonal bolt M8 x 30
• 2 hexagonal bolts M6 x 12
• VA version also for use as bimetal conductor (holder)
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Roof gutter clamp |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8mm |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,7233 kg CO2e / 1 Piece |
|---|
