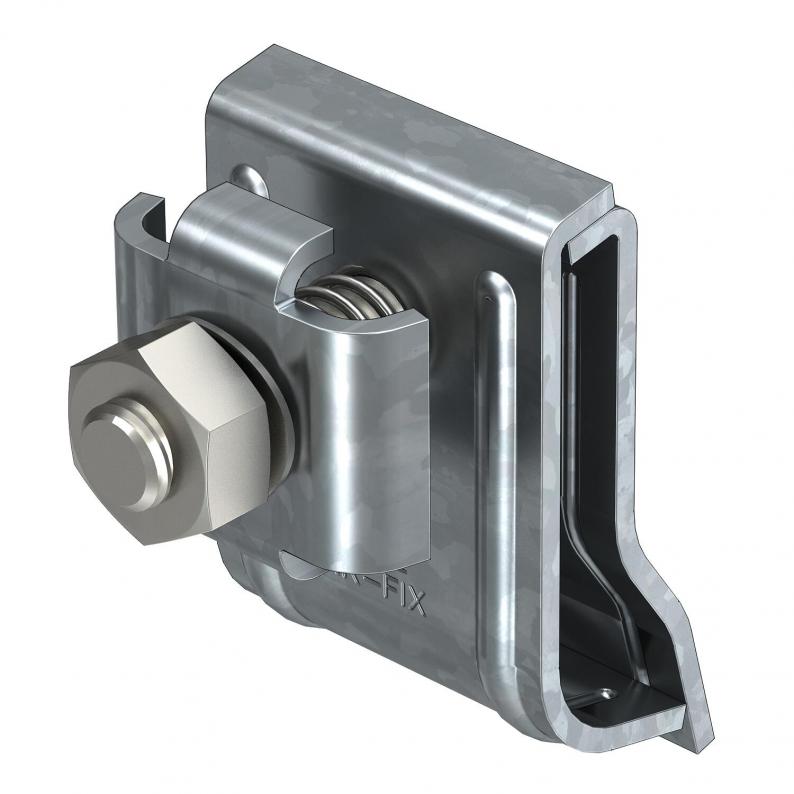

Gutter clamp RK-FIX FT
Type RK-FIX
|Item no. 5316450
|EAN 4012195433682
Item no. / Type
5316450 / RK-FIX
Uyumluluk
2 x Rd 8 mm
Clamping range, min.
15 mm
Clamping range, max.
25 mm
Smallest selling unit: 25 piece
25piece
piece
Description

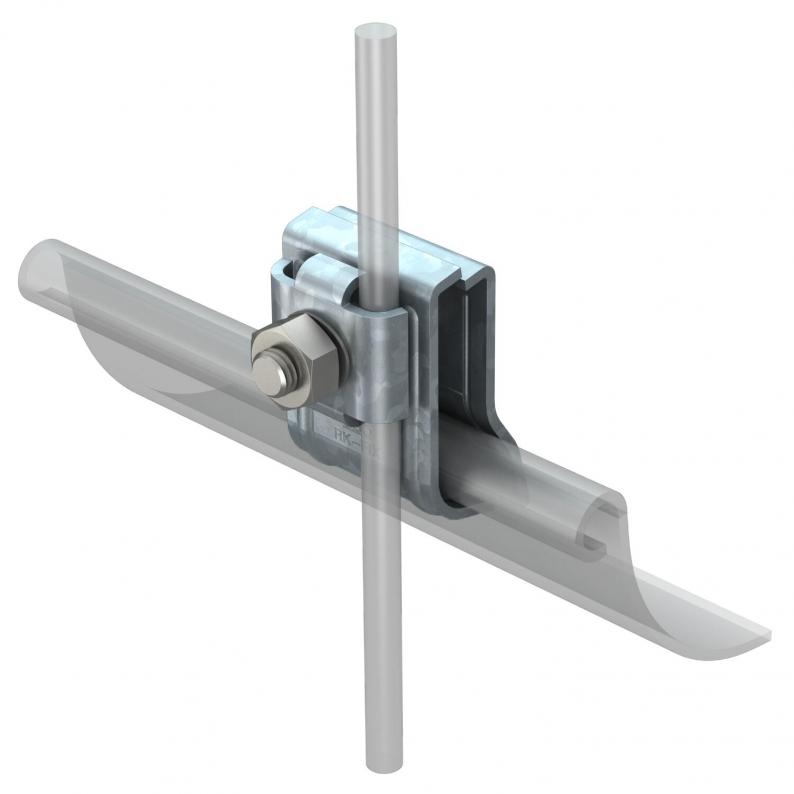

• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45
• With spring for prefixing on rain gutter
• Clamp body and crossbar made of hot-dip galvanised steel
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45
• With spring for prefixing on rain gutter
• Clamp body and crossbar made of hot-dip galvanised steel
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Roof gutter clamp |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | 2 x Rd 8 mm |
| Boyut | 2x8mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, min. | 15 mm |
| Clamping range, max. | 25 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,6591 kg CO2e / 1 Piece |
|---|
