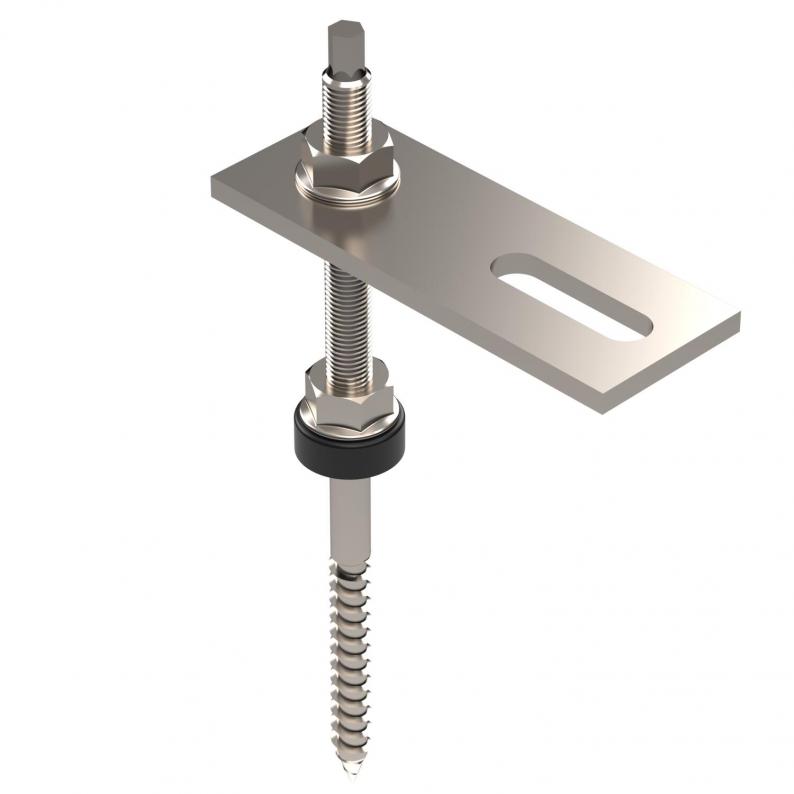

Hanger bolt set for PV module mounting, corrugated roof
Type STSS 10x200 A2
|Item no. 5901820
|EAN 4012197459789
Item no. / Type
Length
Shank diameter
Smallest selling unit: 20 piece
20piece
piece
Description
Hanger bolt set to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for fastening in the wooden substructure of corrugated roofs made out of plastic, tin or fibre cement. Set consists of hanger bolt with pre-mounted EPDM seal, adapter plate for the support profile and additional nuts for the optional height adjustment. Fastening of the support profile with screw with slot nut, type SKS HM (please order separately).
Technical data

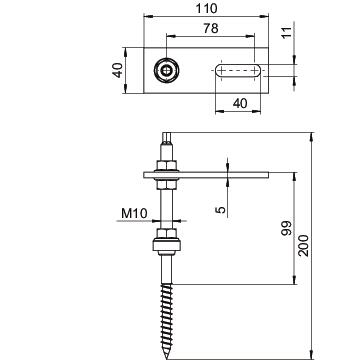

Dimensions
| Length | 200 mm |
|---|---|
| Dimension G | 64 mm |
| Dimension L1 | 110 mm |
Technical data
| Diameter | 10 mm |
|---|---|
| Thread metric | 10 |
| Hardened | yes |
| Two-compartment | yes |
| Screw system | Hexagon head |
| Screw system | Hexagonal |
| Head shape | Hexagonal |
| Thread type | Metric |
| Shank diameter | 10 mm |
| Dimension | 200x40x27 |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Max. Roof structure strength | 70 mm |
Environmental Data
0,0083 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0083 kg CO2e / 1 Piece |
|---|
