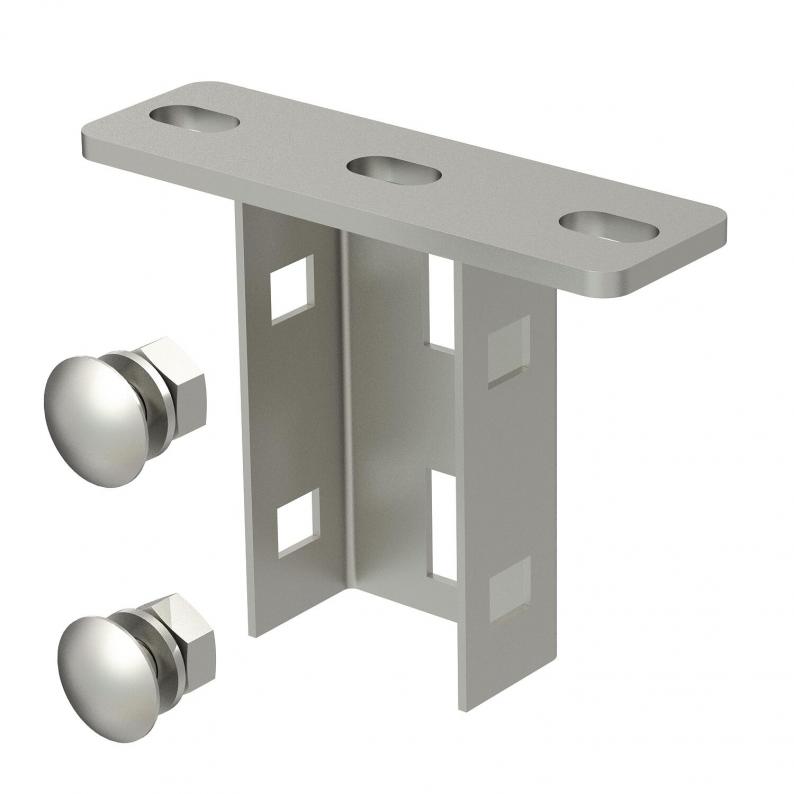

Head plate A4
Type KU 3 A4
|Item no. 6348877
|EAN 4012195706021
Item no. / Type
6348877 / KU 3 A4
Length
130 mm
Width
40 mm
Height
100 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Head plate for mounting on US 3 supports.
The head plate can be mounted to fixed lengths of the U support, type US 3.
Including appropriate fastening material.
Technical data
Dimensions
| Length | 130 mm |
|---|---|
| Width | 40 mm |
| Height | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Açı aralığı min. | 90 mm |
| Açı aralığı maks. | 90 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Boyut | 130x40x100 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 2,6868 kg CO2e / 1 Piece |
|---|
