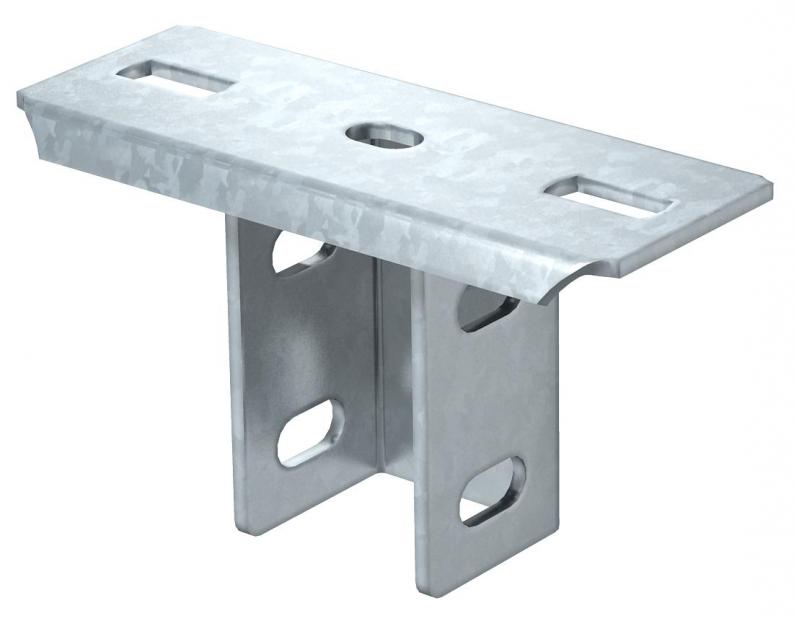

Head plate US 5
Type KUS 5 FT
|Item no. 6348904
|EAN 4012196168910
Item no. / Type
6348904 / KUS 5 FT
Length
140 mm
Width
75 mm
Height
104 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Head plate for mounting on US 5 supports. In combination with the US 5 support, suspended supports of any length can be created in situ. Also suitable for fixing vertical ladders, type SLM 50.
The head plate can be mounted to fixed lengths of the U support, type US 5. The spacer, type DSK 45, is used to install the head plate.
Technical data
Dimensions
| Length | 140 mm |
|---|---|
| Width | 75 mm |
| Height | 104 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Açı aralığı min. | 90 mm |
| Açı aralığı maks. | 90 mm |
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | U profile |
| Version for | Screw head plate |
| Boyut | 140x75x104 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,4113 kg CO2e / 1 Piece |
|---|
