Head plate, variable
Type KI 8 VLK FT
|Item no. 6348157
|EAN 4012196190997
Item no. / Type
6348157 / KI 8 VLK FT
Length
200 mm
Width
100 mm
Height
221,5 mm
Smallest selling unit: 1 piece
1piece
piece
Description

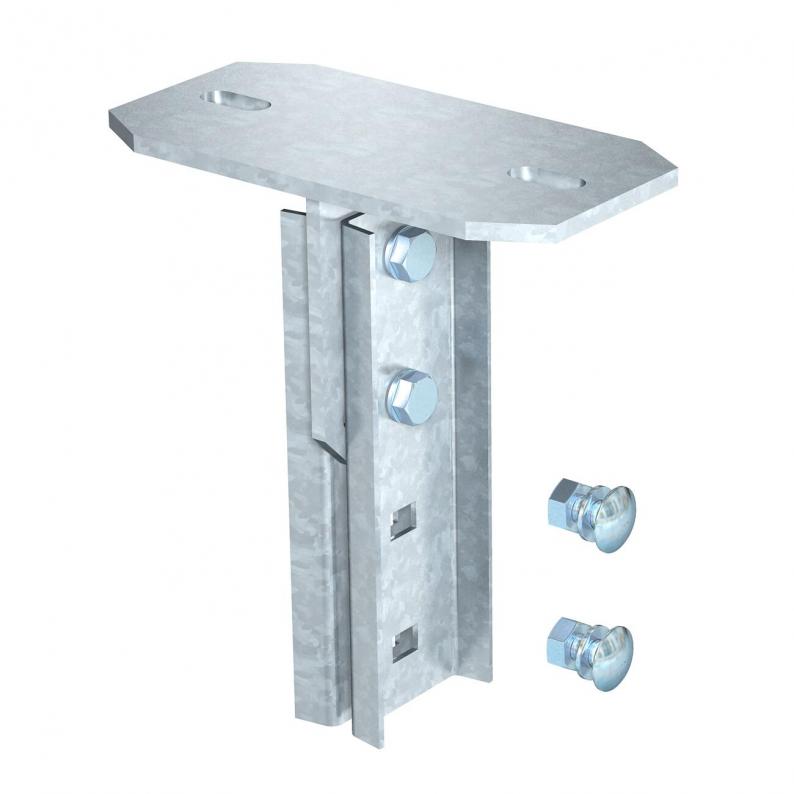

Variable head plate, adjustable in straight direction, for installation on IS 8 support.
Including appropriate fastening material.
Limit the length of the support to max. 2,000 mm.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 100 mm |
| Height | 221,5 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for ceiling fastening | yes |
| Suitable for panel fastening | no |
| Suitable for profile shapes | I profile |
| Version for | Screw head plate |
| Dimension | 200mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
5,0132 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,0132 kg CO2e / 1 Piece |
|---|
