Heavy-duty frame cassette, blank, RKSL, nominal size 250-3
Type RK SL1 V2 20
Item no. 7405892
EAN 4012195105824
Item no. / Type
Floor height, min.
Floor covering thickness
Dimension h
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
piece
Description

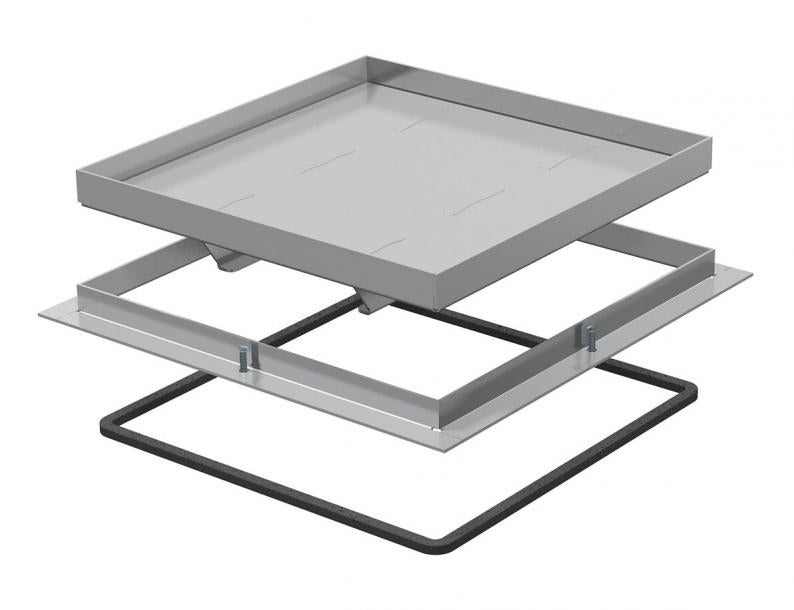

"Blank" heavy-duty frame cassette for the creation of an inspection opening in the UZD250-3 in dry or wet-cleaned floors. Load class 1 to 10 kN. Only suitable for smooth floor coverings for indoor use.
Technical data
Technical data
| Screed height, min. | 70 mm |
|---|---|
| Floor height, min. | 90 mm |
| Floor covering thickness | 18 mm |
| Length of installation dimensions | 290 mm |
| Wide installation dimensions | 290 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Heavy load class | 10 kN (OBO SL1) |
| Installation system type | GB2 |
| Heavy-duty version | yes |
| ROHS-conformant | yes |
| Dimension | 282x282x20 |
| Material | Stainless steel 1.4301 |
| Product series | RK |

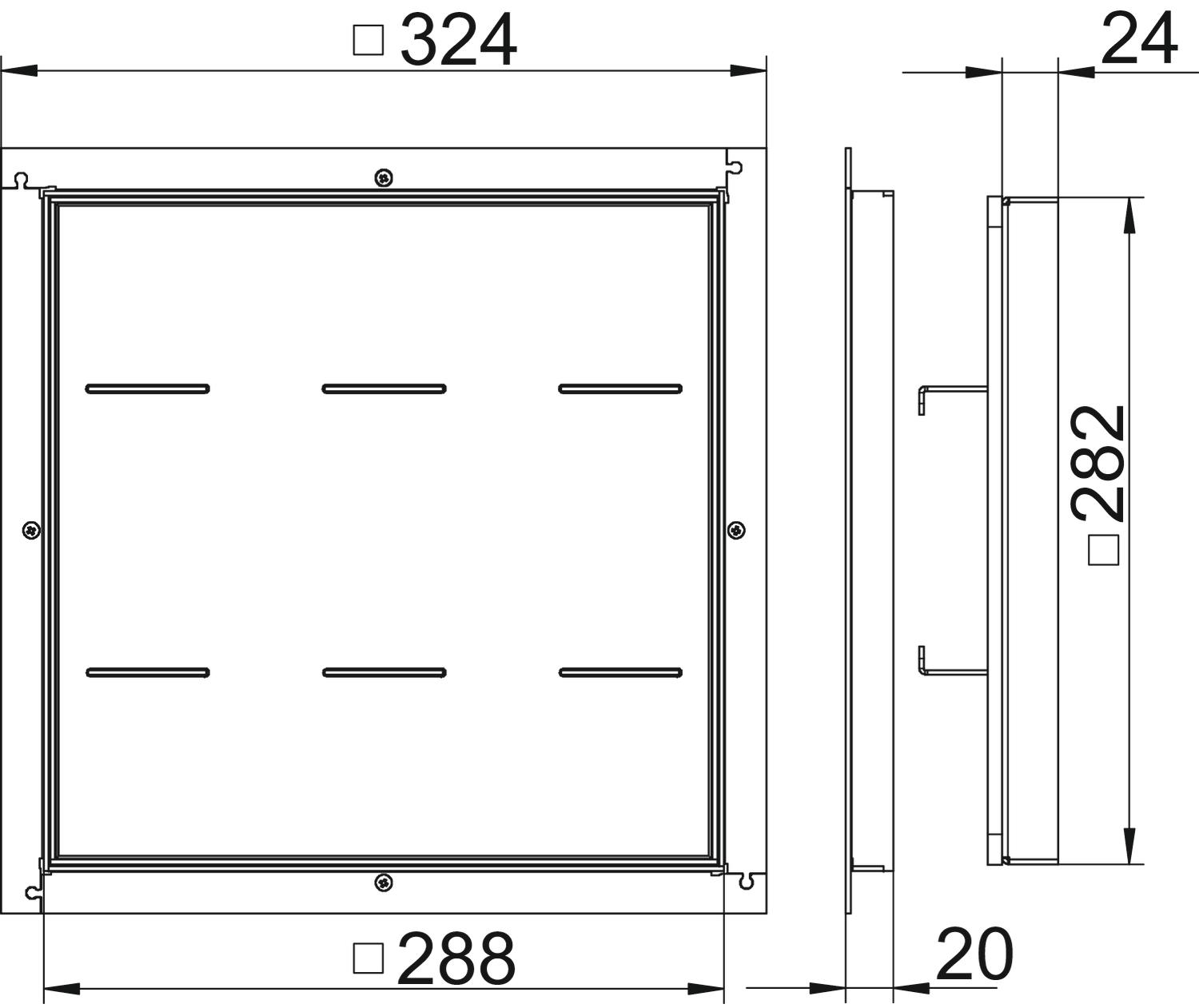

Dimensions
| Dimension A | 324 mm |
|---|---|
| Dimension B | 288 mm |
| Dimension C | 282 mm |
| Dimension h | 20 mm |
Downloads
0 selected
Data sheet (2)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor covering thickness
Dimension h
Item no.
RK SL1 V2 20
90
18
20
7405892
RK SL1 V2 30
100
28
30
7405900
Floor height, min.
Floor covering thickness
Dimension h
RK SL1 V2 20
Item no.
7405892
Floor height, min.
90
Floor covering thickness
18
Dimension h
20
RK SL1 V2 30
Item no.
7405900
Floor height, min.
100
Floor covering thickness
28
Dimension h
30
