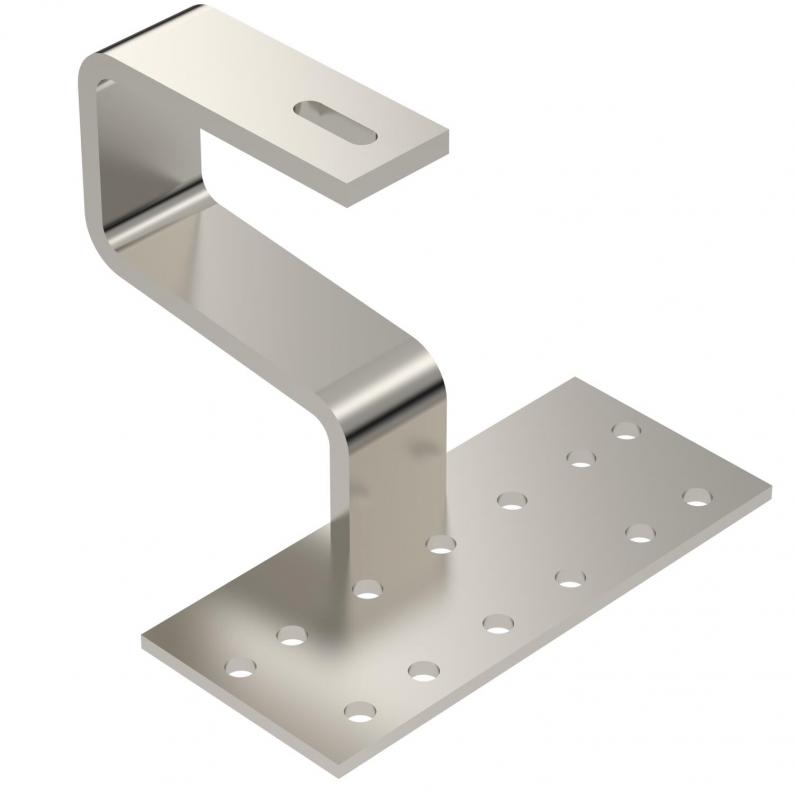

Heavy roof hooks for PV module mounting, tiled roof
Type DHS A2
|Item no. 5901416
|EAN 4012197451165
Item no. / Type
5901416 / DHS A2
Smallest selling unit: 10 piece
10piece
piece
Description
Heavy roof hook to mount photovoltaic modules on pitched roofs in combination with the TP 45 support profile. Suitable for tiled roofs. Fastening on support profile through bolt with hammer nut, type SKSHM A2. Mounting on rafters with TKS wafer-head screws.
Technical data

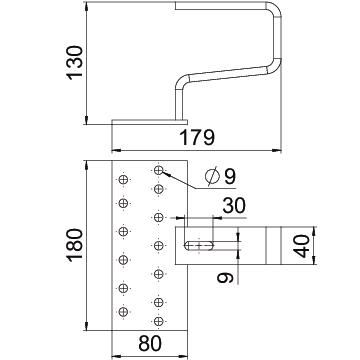

Dimensions
| Width | 179 mm |
|---|
Technical data
| Material thickness | 8 mm |
|---|---|
| With mounting plate | yes |
| Adjustable | no |
| Angle of inclination, min. | 90 ° |
| Angle of inclination, max. | 0 ° |
| Dimension | 179x180x130 |
| Surface | Pickled |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Suitable for fastening photovoltaic roof/facade fastening | Pitched roof fastening |
| Suitable for roof material | Roof tile |
| Wide fastening plate | 80 mm |
| Fastening plate, length | 180 mm |
| Height-fastening plate | 5 mm |
| Penetration of roof necessary | yes |
| Alignment | Horizontal |
| Anchoring | Bolts |
Environmental Data
6,5458 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,5458 kg CO2e / 1 Piece |
|---|
