Hexagonal bolt for trapezoidal fastening TPB 100
Type SKS 10x110 G
|Item no. 6418244
|EAN 4012196348794
Item no. / Type
6418244 / SKS 10x110 G

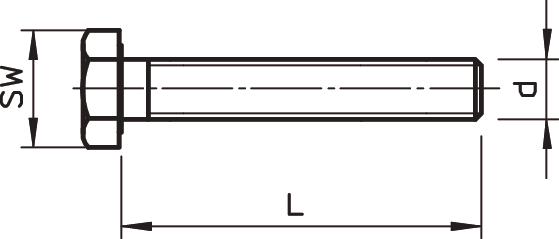

Dimension L
110 mm
Thread metric
10
Dimension d
10 mm
WAF
17
Material
Steel
Smallest selling unit: 20 piece
20piece
piece
Description

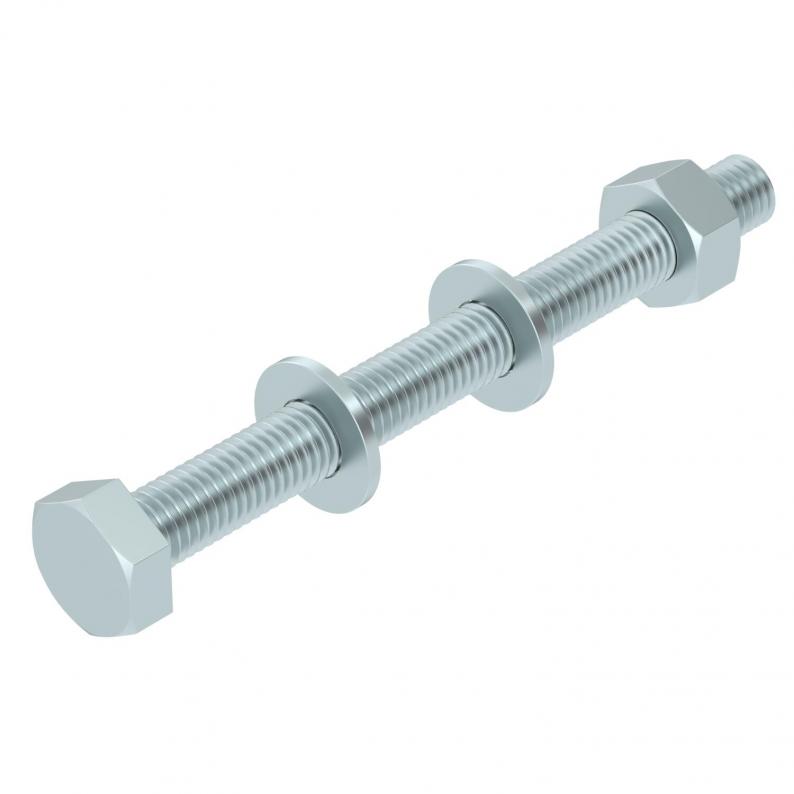

Hexagonal bolt for mounting trapezoidal fastening TPB 100, with shaft and thread, including hexagonal nut and 2 washers.
Technical data
Dimensions
| Length | 110 mm |
|---|---|
| Dimension L | 110 mm |
| Dimension d | 10 mm |
Technical data
| Thread metric | 10 |
|---|---|
| Thread | M10 |
| Resistance grade | 5.6 |
| With washer | yes |
| With nut | yes |
| Self-locking | no |
| Thread increase | 1,5 mm |
| With flange | no |
| WAF | 17 |
| Screw system | Hexagonal |
| Full thread | yes |
| Thread length | 110 mm |
| Dimension | M10x110 |
| Surface | Electrogalvanised |
| Material | Steel |
| Colour | zinc |
| Left thread | no |
Environmental Data
0,1648 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1648 kg CO2e / 1 Piece |
|---|
