Hexagonal bolt M12 A2
Type SKS 12x80 A2
|Item no. 6418279
|EAN 4012196204373

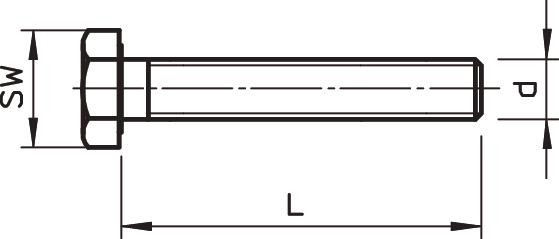

Item no. / Type
Dimension L
Dimension d
Smallest selling unit: 20 piece
20piece
piece
Description

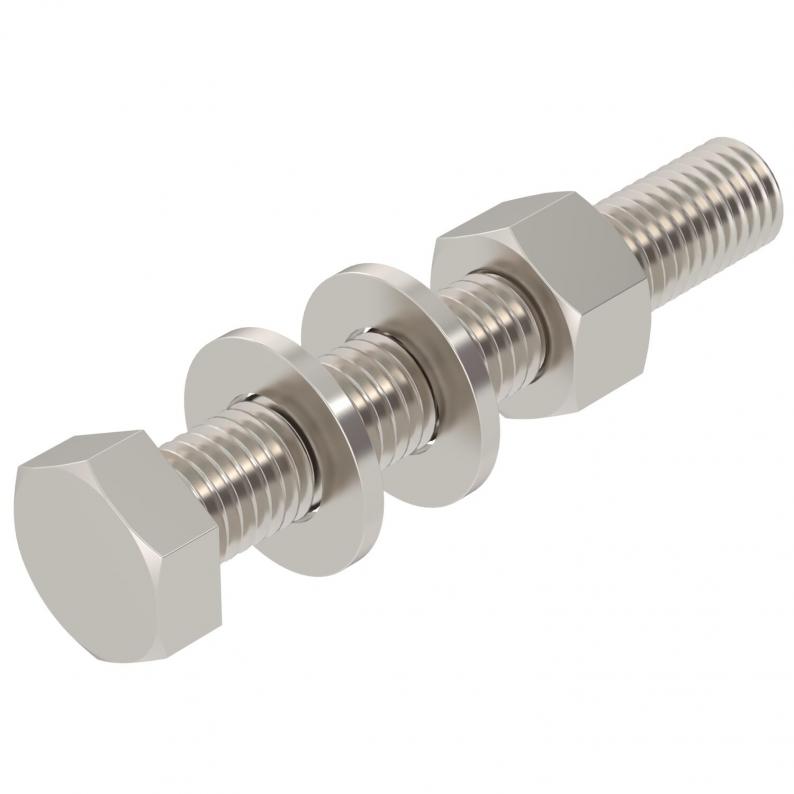

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
Technical data
Dimensions
| Length | 80 mm |
|---|---|
| Dimension L | 80 mm |
| Dimension d | 12 mm |
Technical data
| Thread metric | 12 |
|---|---|
| Thread | M 12 x 80 |
| Resistance grade | A2-70 |
| With washer | yes |
| With nut | yes |
| Self-locking | no |
| Thread increase | 1,75 mm |
| With flange | no |
| WAF | 19 |
| Screw system | Hexagonal |
| Full thread | yes |
| Thread length | 80 mm |
| Thread type | Metric |
| Dimension | M12x80 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Left thread | no |
Environmental Data
0,4856 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4856 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Dimension L
Thread metric
Dimension d
WAF
Material
Item no.
SKS 12x80 A2
80
12
12
19
Stainless steel 1.4301
6418279
SKS 12x100 A2
100
12
12
19
Stainless steel 1.4301
6418368
SKS 12x110 A2
110
12
12
19
Stainless steel 1.4301
6418376
Dimension L
SKS 12x80 A2
Item no.
6418279
Dimension L
80
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel 1.4301
SKS 12x100 A2
Item no.
6418368
Dimension L
100
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel 1.4301
SKS 12x110 A2
Item no.
6418376
Dimension L
110
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel 1.4301
