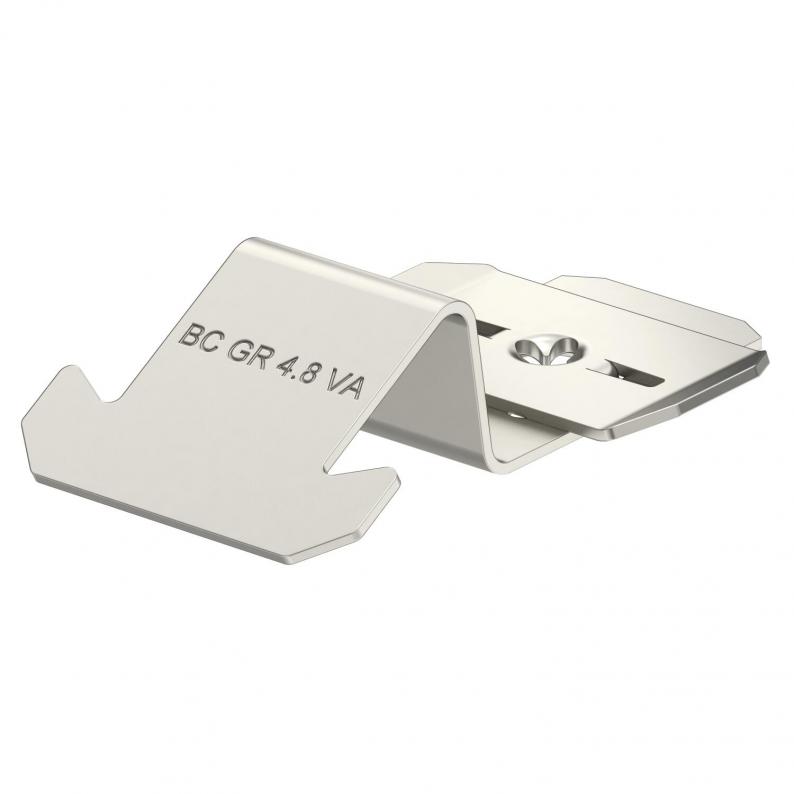

Hold down clip
Type BC GR 4.8 A2
|Item no. 6016665
|EAN 4012195980698
Item no. / Type
6016665 / BC GR 4.8 A2
Smallest selling unit: 20 piece
20piece
piece
Description
Hold-down clip for the screwless mounting of mesh cable trays onto MS profile rails with a slot width of 22 mm.
Technical data
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| With screw accessories | no |
| Version for | For wire thicknesses 3.9 and 4.8 mm |
| Suitable for profile shapes | C profile |
| Boyut | 82x33x17 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |

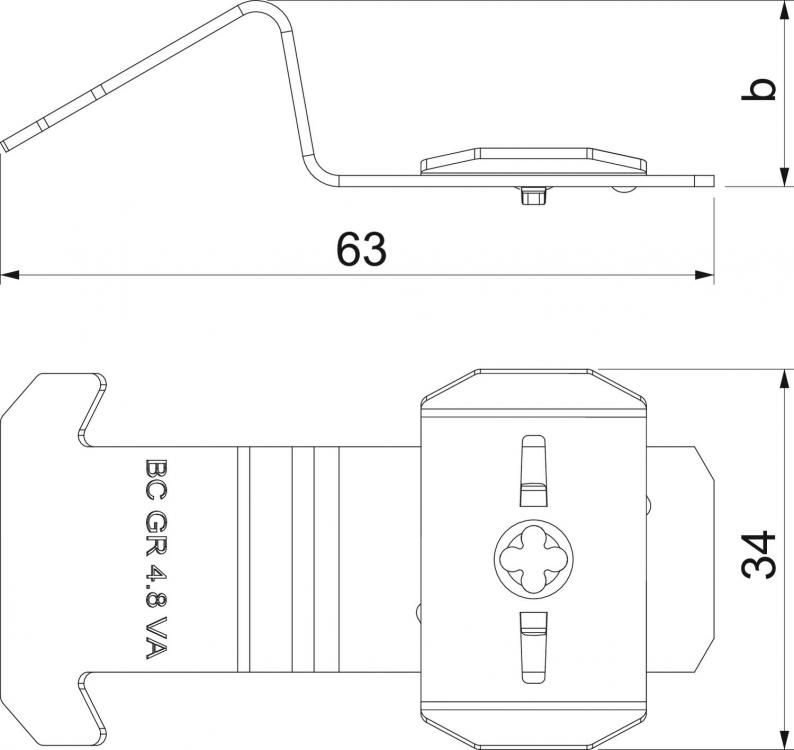

Dimensions
| Dimension b | 17 mm |
|---|
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,1632 kg CO2e / 1 Piece |
|---|
