HoverCube VH-4, empty housing
Type VH-4 LG RW
Item no. 6109801
EAN 4012196101511
Item no. / Type
6109801 / VH-4 LG RW
Number of socket outlets with protective contact CEE 7/3 (type F)
0
FI protection switch
Without
Colour
Pure white; RAL 9010
Number of CEE sockets
0
Number of compressed air connections
0
Smallest selling unit: 1 piece
1piece
piece
Description

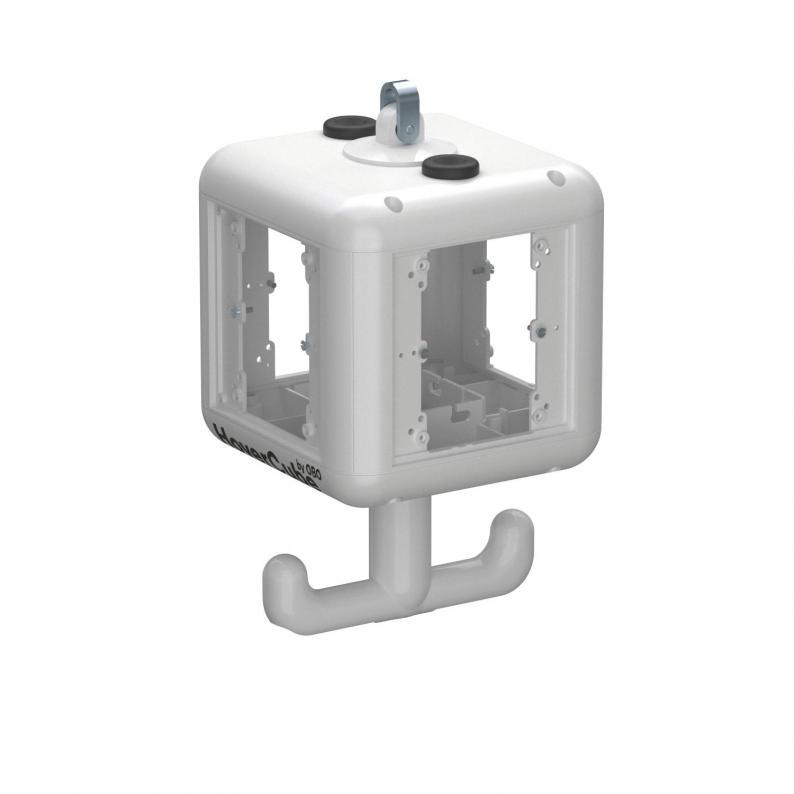

Empty housing with suspension lug and grip hook, for the installation of four electrical resources, with included partition. Without cover plates.
Technical data
Dimensions
| Width | 140 mm |
|---|---|
| Height | 237 mm |
Technical data
| Protection rating | IP20 |
|---|---|
| Depth | 140 mm |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 0 |
| CEE socket, 16 A | Without |
| CEE socket, 32 A | Without |
| Protection | Without |
| FI protection switch | Without |
| Supply/connection option | 2 Leitungen (Ringleitung/zum Durchschleifen) |
| Type of mains connection | Other |
| Handling | abhängbar |
| Other installations and/or empty slots | 0 |
| Military version | no |
| ROHS-conformant | Exempt |
| Dimension | 140x140x252 |
| Material | Polyamide |
| Colour | Pure white; RAL 9010 |
| Number of CEE sockets | 0 |
| Number of compressed air connections | 0 |
| Product series | HoverCube |
Environmental Data
2,1577 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,1577 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 2,1577 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6109887
Positioner for power supply units VHType
VH-POS
Smallest selling unit: 1 piece
1piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)
