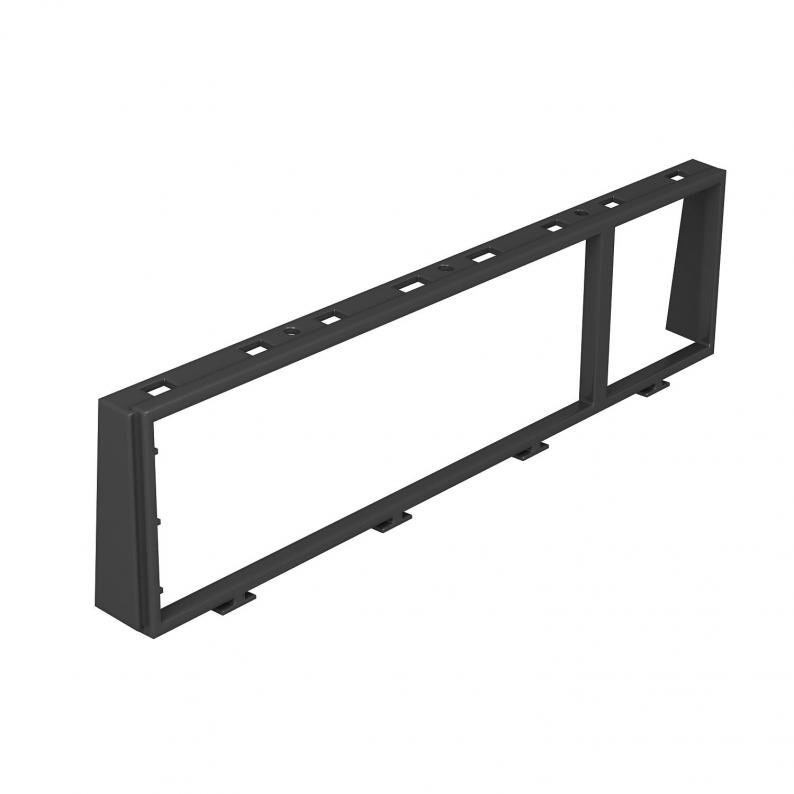

Installation frame for combination of 3x and 1x Modul 45® devices
Type MT45V 3+1
|Item no. 7408680
|EAN 4012195674511
Item no. / Type
7408680 / MT45V 3+1
Number of installable devices
2
Smallest selling unit: 5 piece
5piece
piece
Description
For the installation of a combination of triple and single Modul 45 sockets for System 55 service outlets with mounting support for vertical installation of Modul 45 devices. The installation frame is designed for use with 0° sockets for straight connectors (not angled connectors).
Technical data
Technical data
| Strain relief option | yes |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Number of installable devices | 2 |
| Seal installation option | no |
| Floor plate | no |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Accessory mounting type | Lock |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,0511 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0511 kg CO2e / 1 Piece |
|---|
